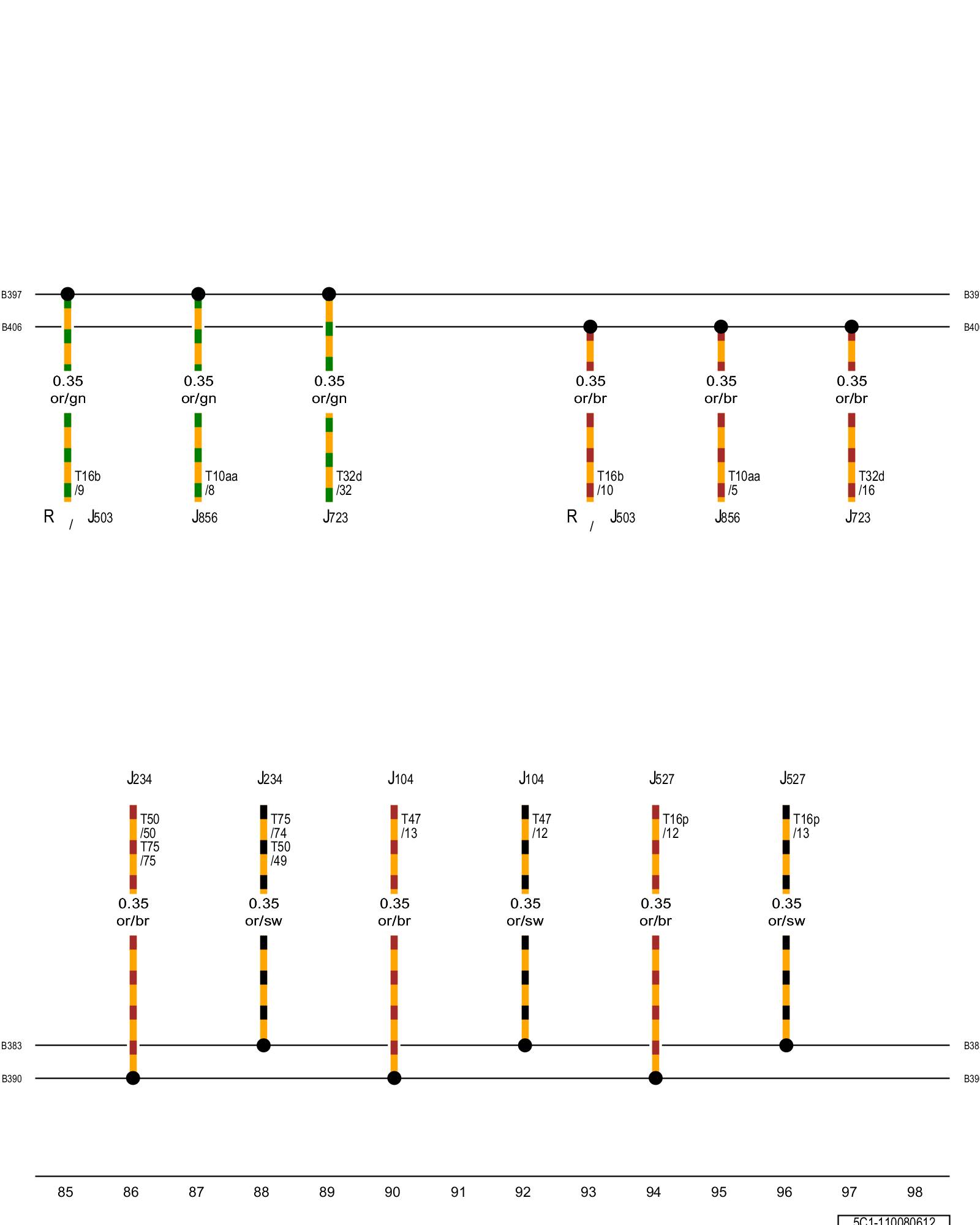

Diagram 110/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Powertrain CAN bus high connection 1 (in main wiring harness), Powertrain CAN bus low connection 1 (in main wiring harness), Comfort system CAN bus high connection 1 (in main wiring harness), Comfort system CAN bus low connection 1 (in main wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS control module Anti-Lock Brake System (ABS) Overview Locations [1][2]Diagrams

J234 - Airbag control module Airbag Component Location Overview Control modules in interior [1][2]Air Bag Control Module

J503 - Radio/navigation display unit control module Radio/Navigation System Overview Control modules in interior

J527 - Steering column electronics control module Control modules in interior Steering Column Electronics Control Module -J527-

J723 - Keyless access authorization antenna reader Control modules in interior

J856 - Navigation system control module

R - Radio

T10aa - 10-pin connector

T16b - 16-pin connector

T16p - 16-pin connector

T32d - 32-pin connector

T47 - 47-pin connector

T50 - 50-pin connector

T75 - 75-pin connector

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)
