Diagram 110/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

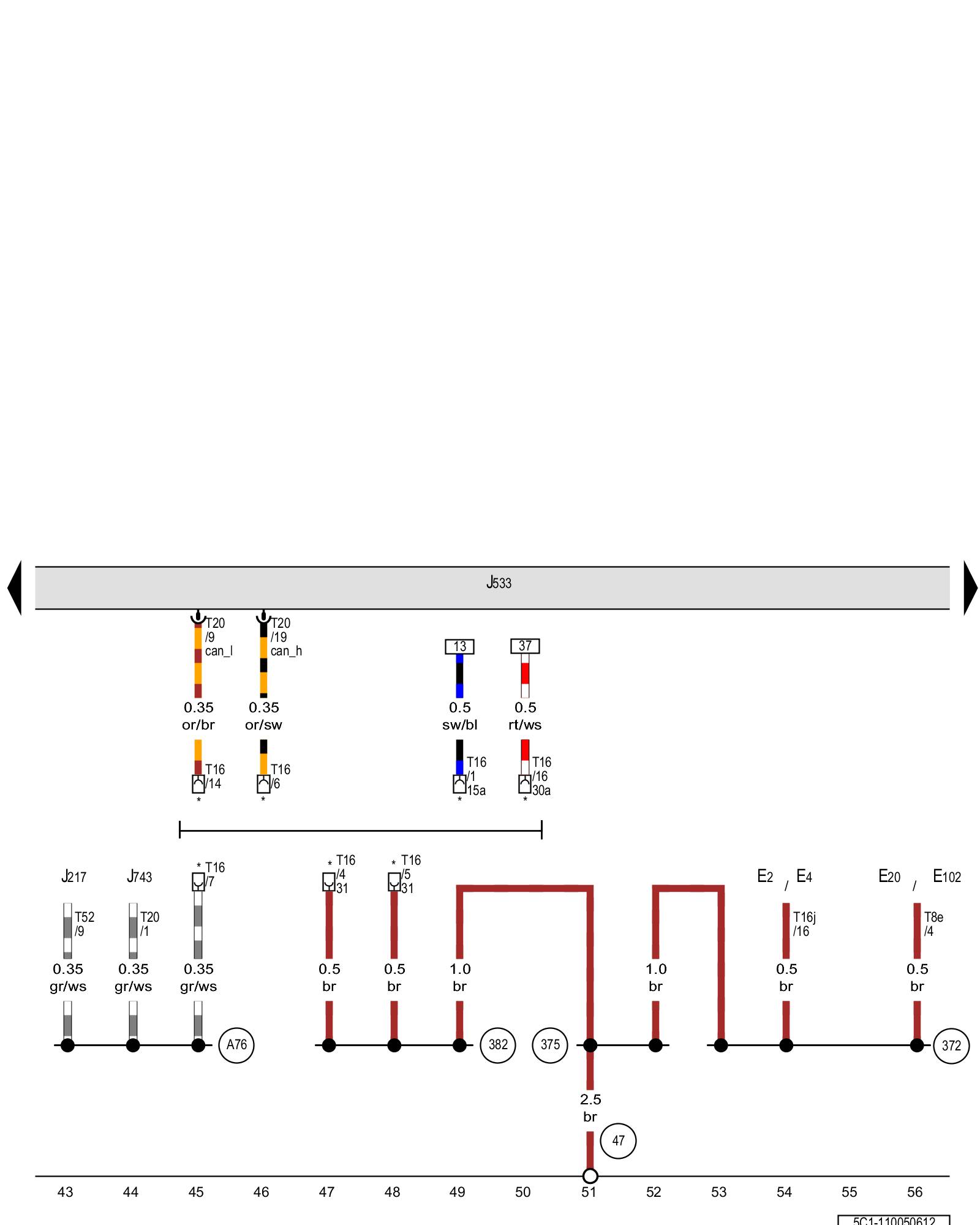

Data bus on board diagnostic interface





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E2 - Turn signal switch

E4 - Headlamp dimmer/flasher switch

E20 - Instrument panel and switch illumination dimmer switch

E102 - Headlamp range control adjuster

J217 - Transmission control module Locations Locations Transmission Control Module -J217-

J533 - Data bus on board diagnostic interface

J743 - DSG transmission Mechatronic Locations DSG Transmission Mechatronic -J743-

T8e - 8-pin connector

T16 - 16-pin connector

T16j - 16-pin connector

T20 - 20-pin connector

T52 - 52-pin connector

(47) - Ground connection in right front footwell Locations

(372) - Ground connection 7 (in main wiring harness)

(375) - Ground connection 10 (in main wiring harness)

(382) - Ground connection 17 (in main wiring harness)

(A76) - KS-diagnostic lead connection (in instrument panel wiring harness)

* - Diagnostic connector
