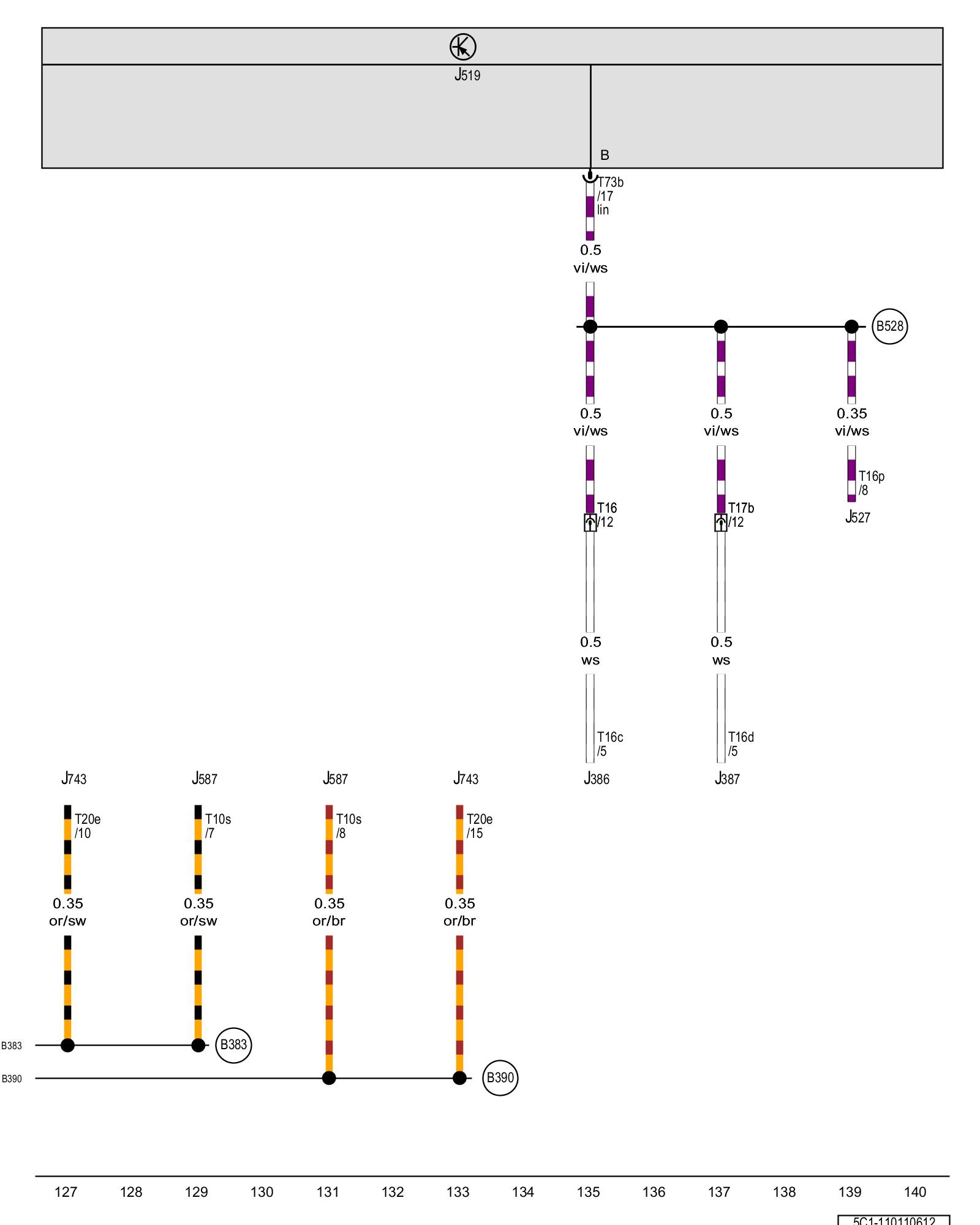

Diagram 110/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Powertrain CAN bus high connection 1 (in main wiring harness), Powertrain CAN bus low connection 1 (in main wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J386 - Driver door control module Locations Control modules in interior

J387 - Front passenger door control module Locations Control modules in interior

J519 - Vehicle electrical system control module Locations Control modules in interior

J527 - Steering column electronics control module Control modules in interior Steering Column Electronics Control Module -J527-

J587 - Selector lever sensor system control module Locations

J743 - DSG transmission Mechatronic Locations DSG Transmission Mechatronic -J743-

T10s - 10-pin connector

T16 - 16-pin connector

T16c - 16-pin connector

T16d - 16-pin connector

T16p - 16-pin connector

T17b - 17-pin connector

T20e - 20-pin connector

T73b - 73-pin connector

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B528) - LIN bus connection 1 (in main wiring harness)
