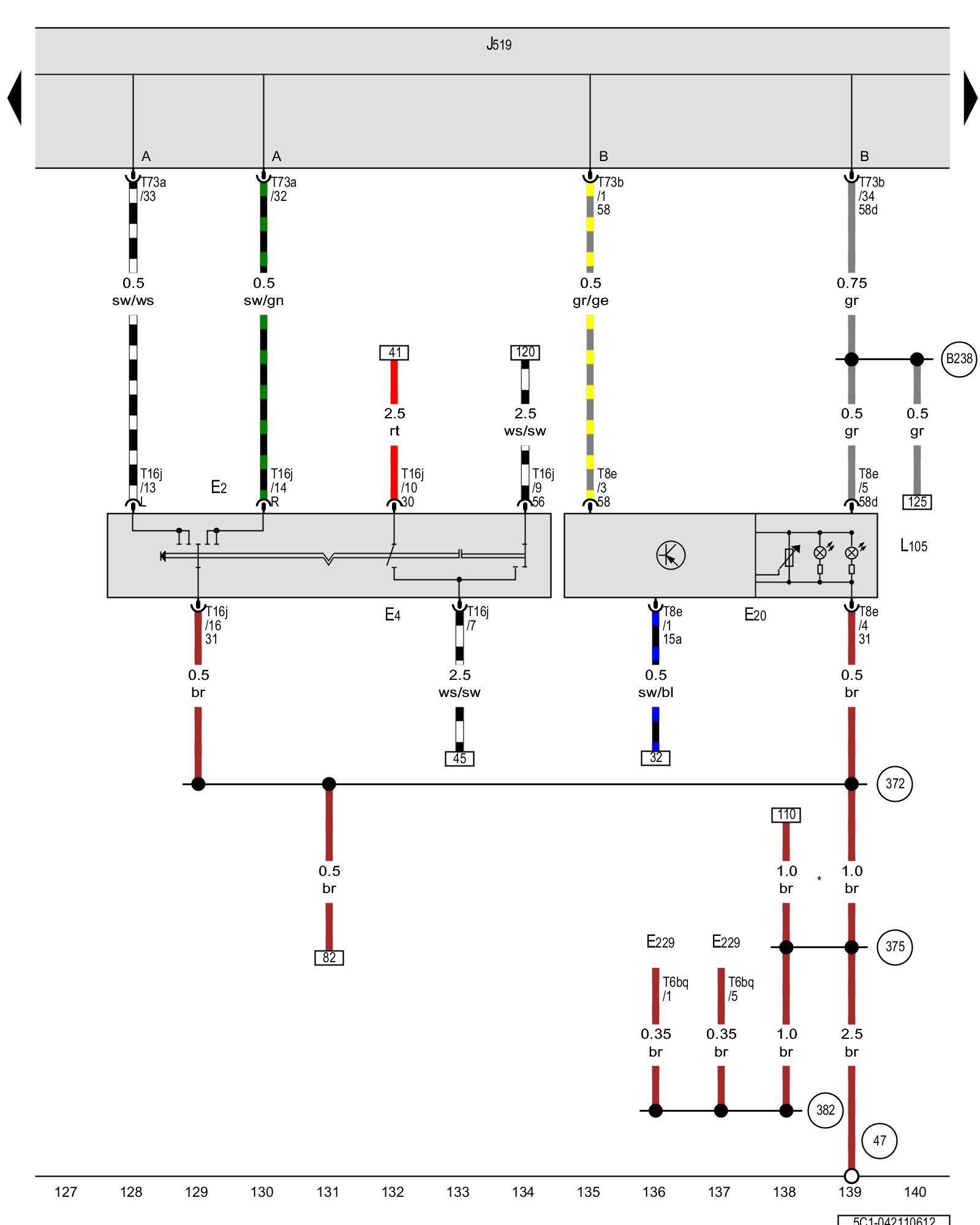

Diagram 42/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Turn signal switch, Headlamp dimmer/flasher switch, Instrument panel and switch illumination dimmer switch, Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E2 - Turn signal switch

E4 - Headlamp dimmer/flasher switch

E20 - Instrument panel and switch illumination dimmer switch

E229 - Emergency flasher switch

J519 - Vehicle electrical system control module Locations Control modules in interior

L105 - Lighting control illumination bulb

T6bq - 6-pin connector

T8e - 8-pin connector

T16j - 16-pin connector

T73a - 73-pin connector

T73b - 73-pin connector

(47) - Ground connection in right front footwell Locations

(372) - Ground connection 7 (in main wiring harness)

(375) - Ground connection 10 (in main wiring harness)

(382) - Ground connection 17 (in main wiring harness)

(B238) - Positive connection 2 (publication) (in interior wiring harness)

* - from December 2011
