Temperature Measurement for Cooling Output, Manual Control System

Temperature Measurement for Cooling Output, Manual Control System

Checking

- Close the hood.

- Measure the ambient temperature.

- Close doors, window and sunroof.

- Open all instrument panel vents.

- Set the A/C system temperature on "MAX A/C".

- Position the air distribution on center air vent.

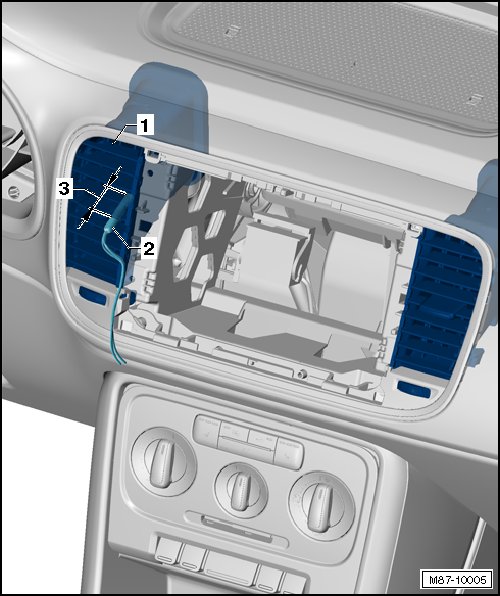

- Keep temperature sensor - 2 - approximately 20 mm (0.75 inch) - 3 - in the marked air vent- 1 - area.






- Turn on the A/C System by pressing the AC button.

- Start the engine.

• Start of time measurement (5 min).

- Bring engine to 2000 RPM and hold it there.

Evaluate

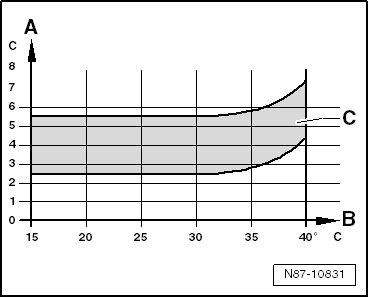

The temperature of the air coming out of the driver side vents must be within the tolerance range (see diagram) after 5 minutes, depending on the ambient temperature.






A The temperature of the air coming out of the driver side vents
B Ambient temperature
C Permissible tolerance range
