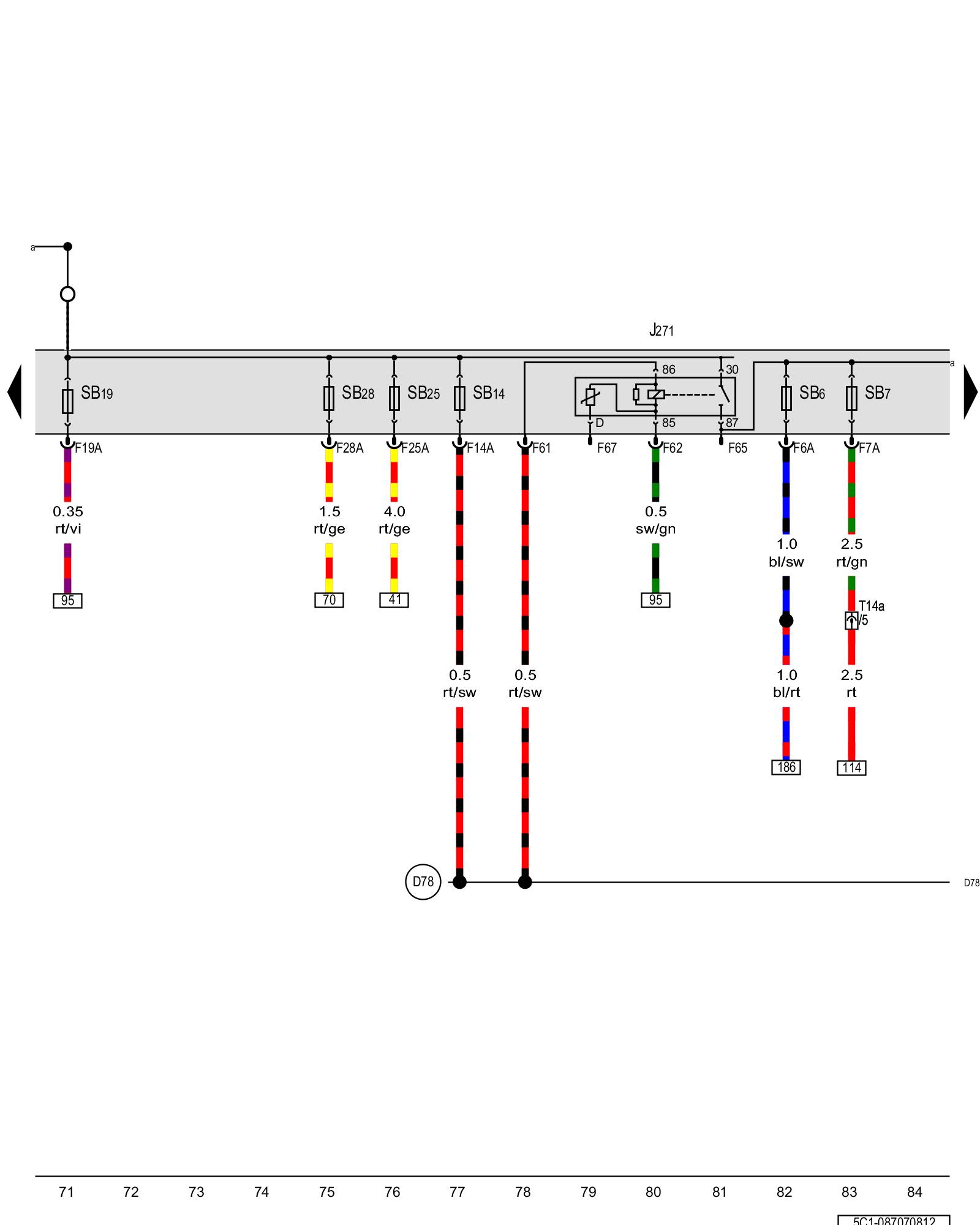

Diagram 87/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Motronic engine control module power supply relay





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J271 - Motronic engine control module power supply relay Relay Arrangements on the Electronics Box

SB6 - Fuse 6 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

SB7 - Fuse 7 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

SB14 - Fuse 14 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

SB19 - Fuse 19 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

SB28 - Fuse 28 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

SB29 - Fuse 29 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

T14a - 14-pin connector

(D78) - Positive connection 1 (30a) (in engine compartment wiring harness)
