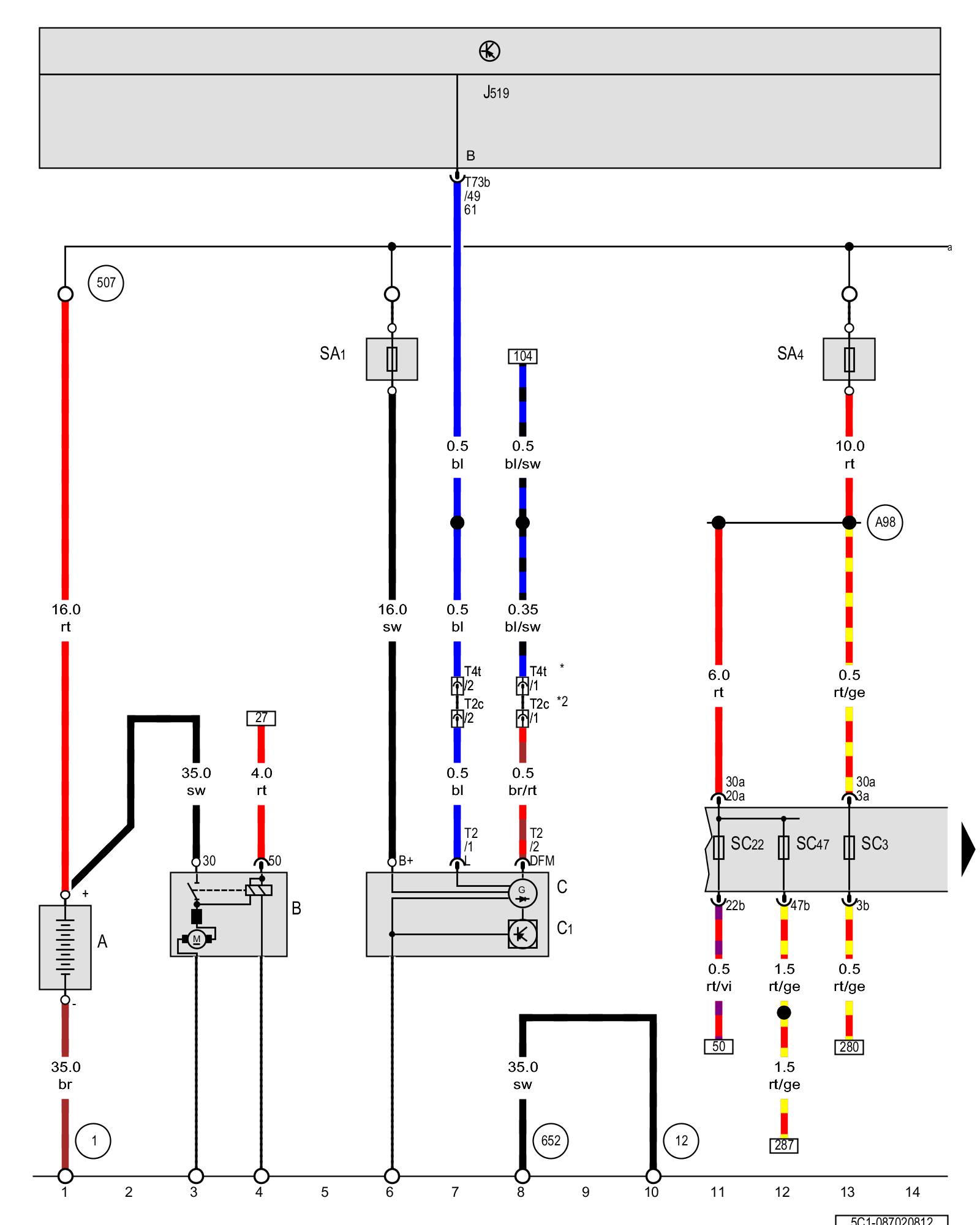

Diagram 87/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Battery, Starter, Generator, Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

C - Generator

C1 - Voltage regulator

J519 - Vehicle electrical system control module Locations Control modules in interior

SA1 - Fuse 1 (on fuse panel A) Overview Of Fuses (SA), (SB), (SC)

SC3 - Fuse 3 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SA4 - Fuse 4 (on fuse panel A) Overview Of Fuses (SA), (SB), (SC)

SC22 - Fuse 22 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SC47 - Fuse 47 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

T2 - Double connector

T2c - Double connector

T4t - 4-pin connector

T73b - 73-pin connector

(1) - Ground strap, battery to body Locations

(12) - Ground connection in engine compartment, left Locations

(507) - Terminal 30 threaded connection (on battery fuse holder)

(652) - Transmission/engine ground connection Locations

(A98) - Positive connection 4 (30) (in instrument panel wiring harness)

* - Only for vehicles with A/C system

*2 - Only for vehicles without an A/C system
