Diagram 87/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

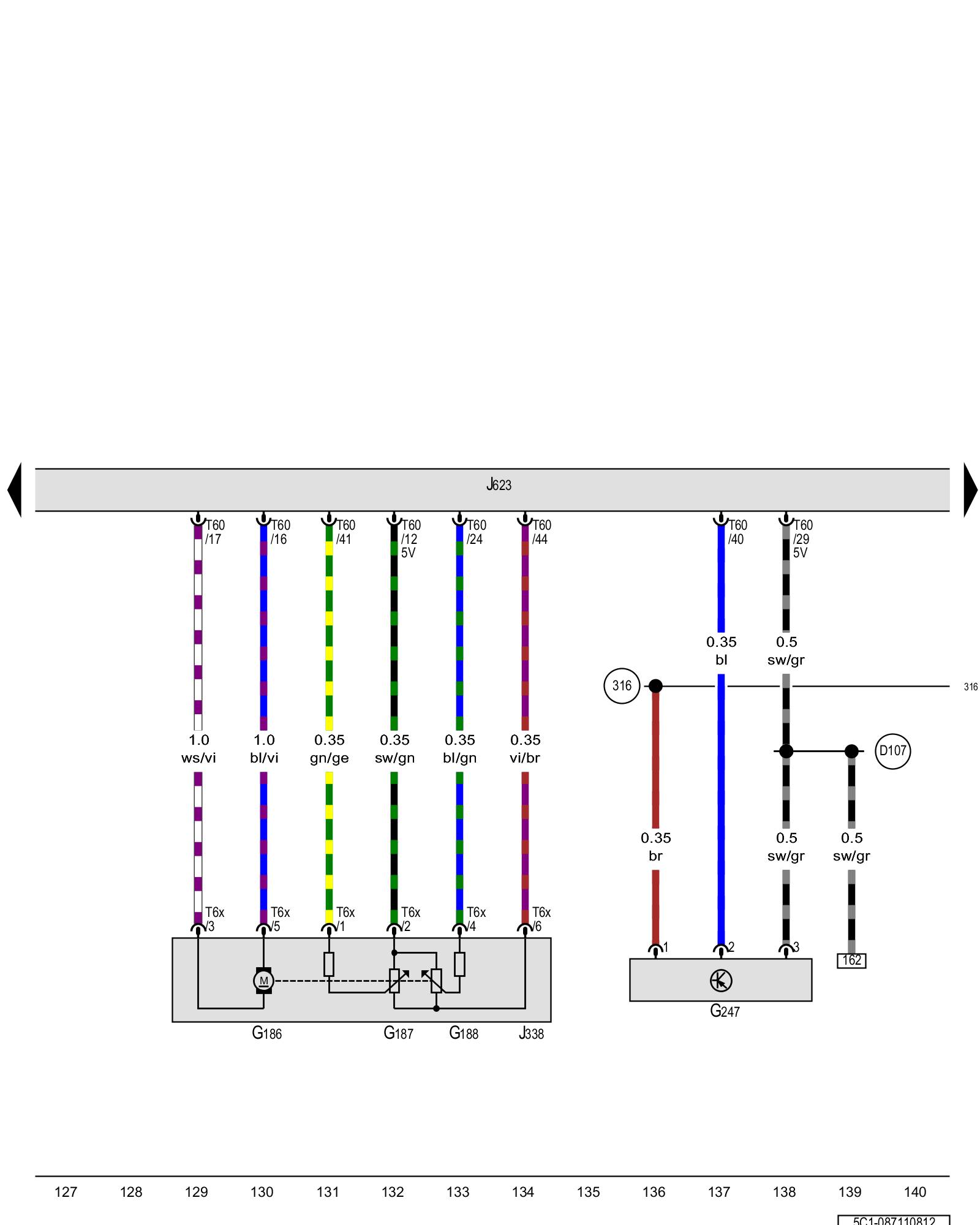

EPC throttle drive, EPC throttle drive angle sensor 1, EPC throttle drive angle sensor 2, Fuel pressure sensor, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G186 - EPC throttle drive 2.0L CCTA and CBFA Overviews

G187 - EPC throttle drive angle sensor 1 2.0L CCTA and CBFA Overviews

G188 - EPC throttle drive angle sensor 2 2.0L CCTA and CBFA Overviews

G247 - Fuel pressure sensor Locations Diagrams

J338 - Throttle valve control module Locations [1][2]Diagrams

J623 - Engine control module Locations

T6x - 6-pin connector

T60 - 60-pin connector

(316) - Sensor ground connection 2 (in engine wiring harness)

(D107) - Connection 5 (in engine compartment wiring harness)
