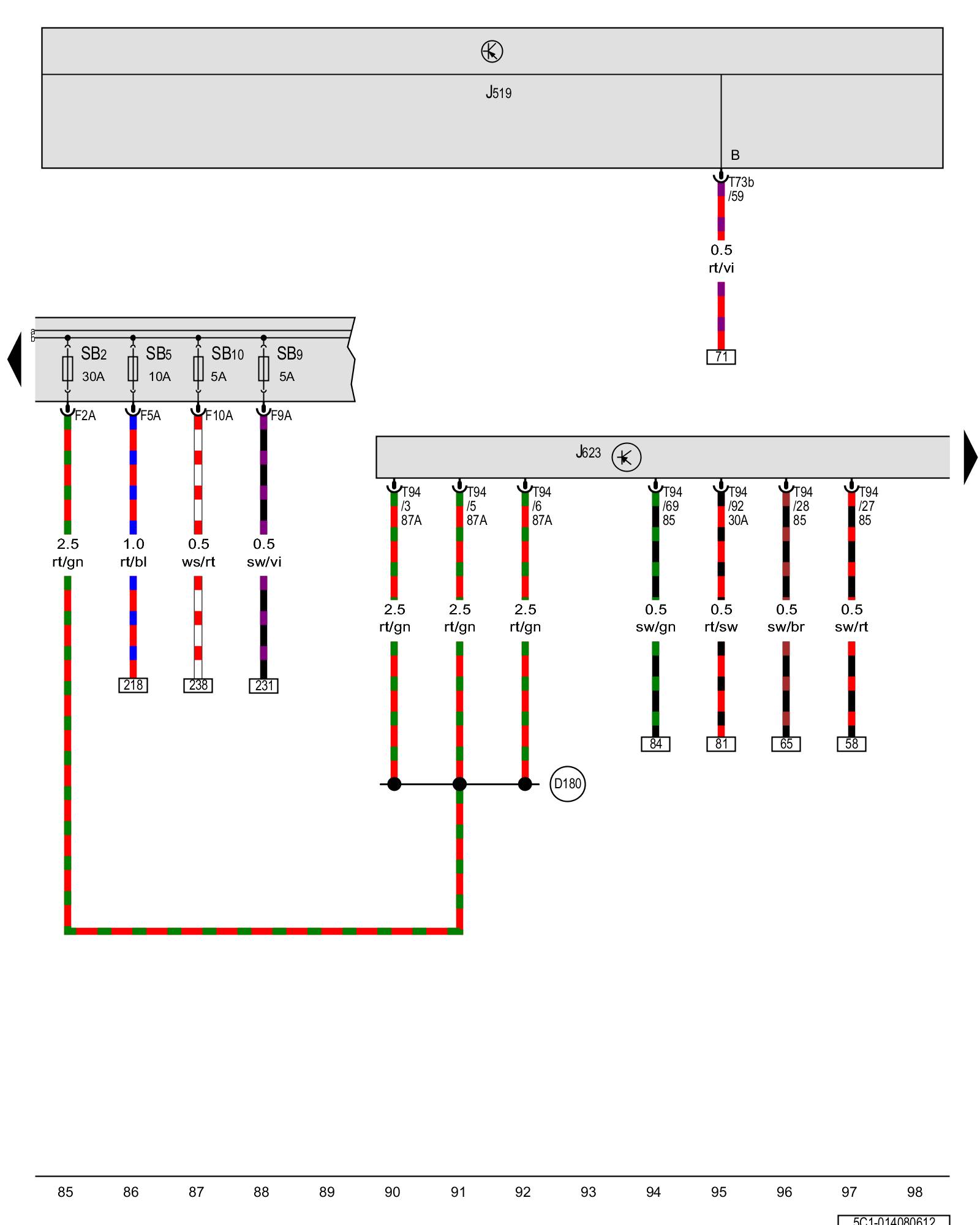

Diagram 14/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Locations Control modules in interior

J623 - Engine control module Locations

SB2 - Fuse 2 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

SB5 - Fuse 5 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

SB9 - Fuse 9 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

SB10 - Fuse 10 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

T73b - 73-pin connector

T94 - 94-pin connector

(D180) - Connection 87a (in engine compartment wiring harness)
