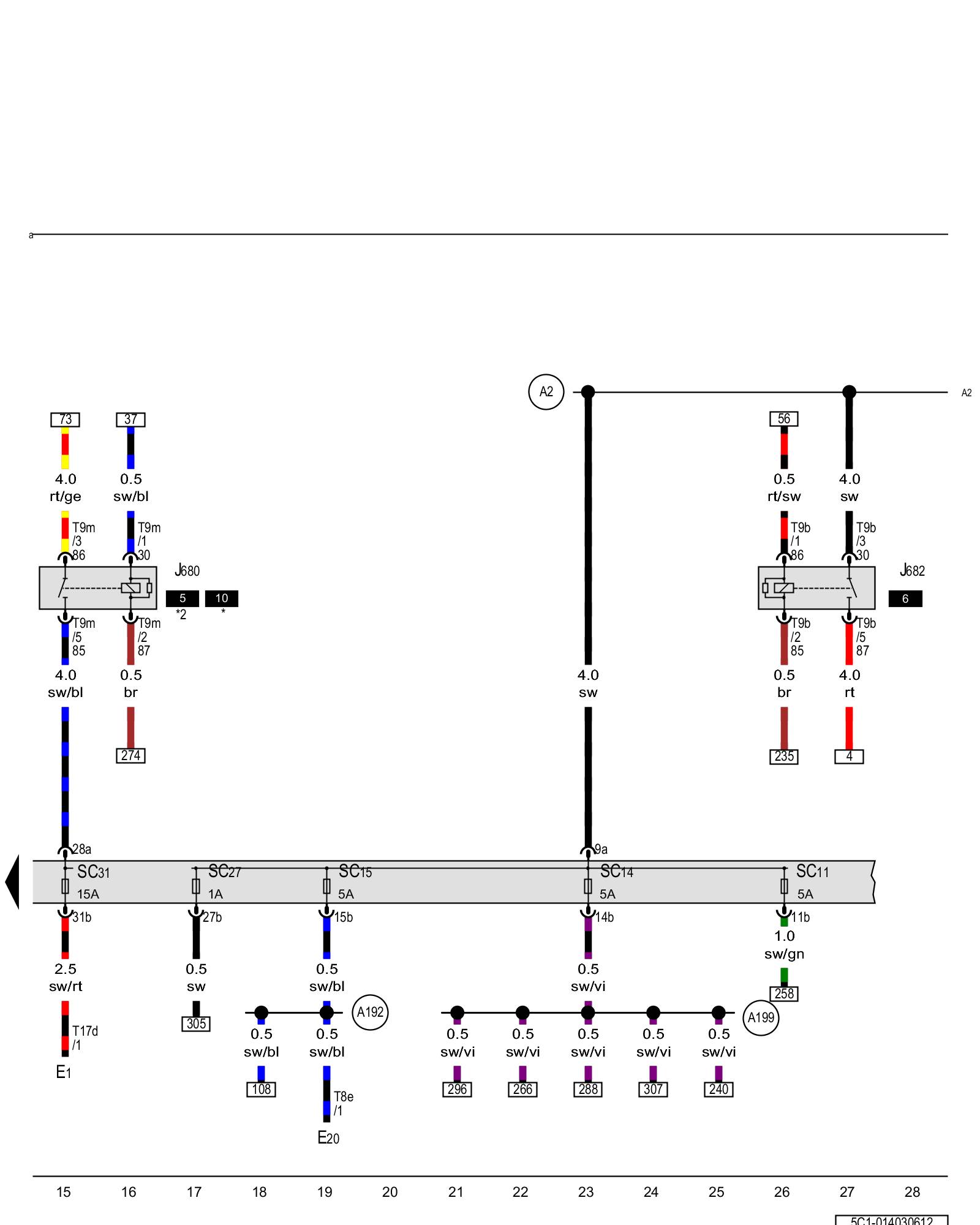

Diagram 14/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Terminal 75 power supply relay 1, Terminal 50 power supply relay





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light switch

E20 - Instrument panel and switch illumination dimmer switch

J680 - Terminal 75 power supply relay 1 Relay Carrier on Vehicle Electrical System Control Module

J682 - Terminal 50 power supply relay Relay Carrier on Vehicle Electrical System Control Module

SC11 - Fuse 11 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SC14 - Fuse 14 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SC15 - Fuse 15 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SC27 - Fuse 27 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SC31 - Fuse 31 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

T8e - 8-pin connector

T9b - 9-pin connector

T9m - 9-pin connector

T17d - 17-pin connector

(A2) - Positive connection (15) (in instrument panel wiring harness)

(A192) - Positive connection 3 (15a) (in instrument panel wiring harness)

(A199) - Positive connection 4 (15a) (in instrument panel wiring harness)

* - from November 2011

*2 - Through November 2011
