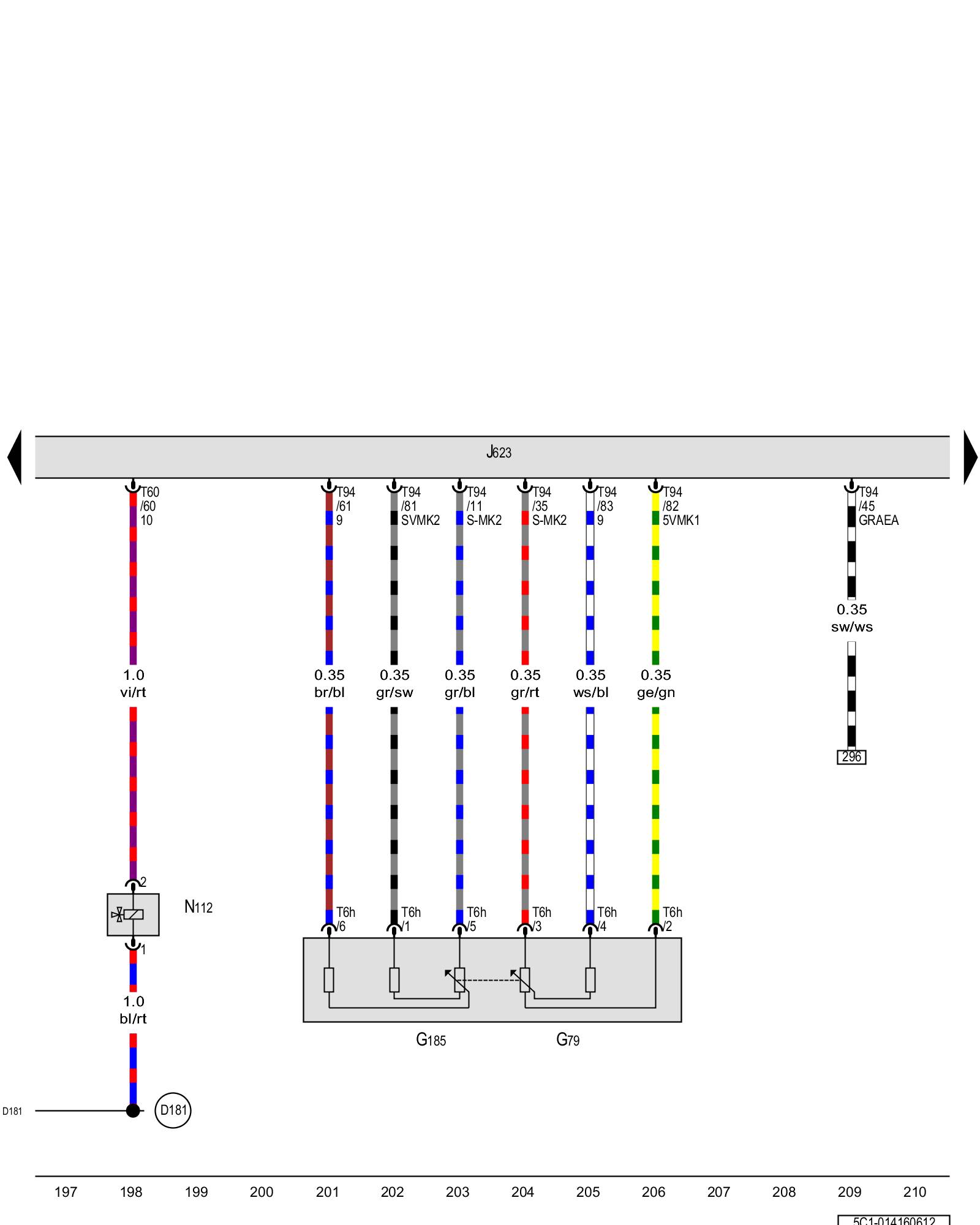

Diagram 14/16 (Tracks 197-210)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Accelerator pedal position sensor, Accelerator pedal position sensor 2, Engine control module, Secondary air injection solenoid valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G79 - Accelerator pedal position sensor Locations [1][2]Accelerator Pedal Position Sensor

G185 - Accelerator pedal position sensor 2 Locations [1][2]Accelerator Pedal Position Sensor

J623 - Engine control module Locations

N112 - Secondary air injection solenoid valve Locations [1][2]Air Injection Control Valve

T6h - 6-pin connector

T60 - 60-pin connector

T94 - 94-pin connector

(D181) - Connection 87a (in engine compartment wiring harness) 2
