Diagram 79/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

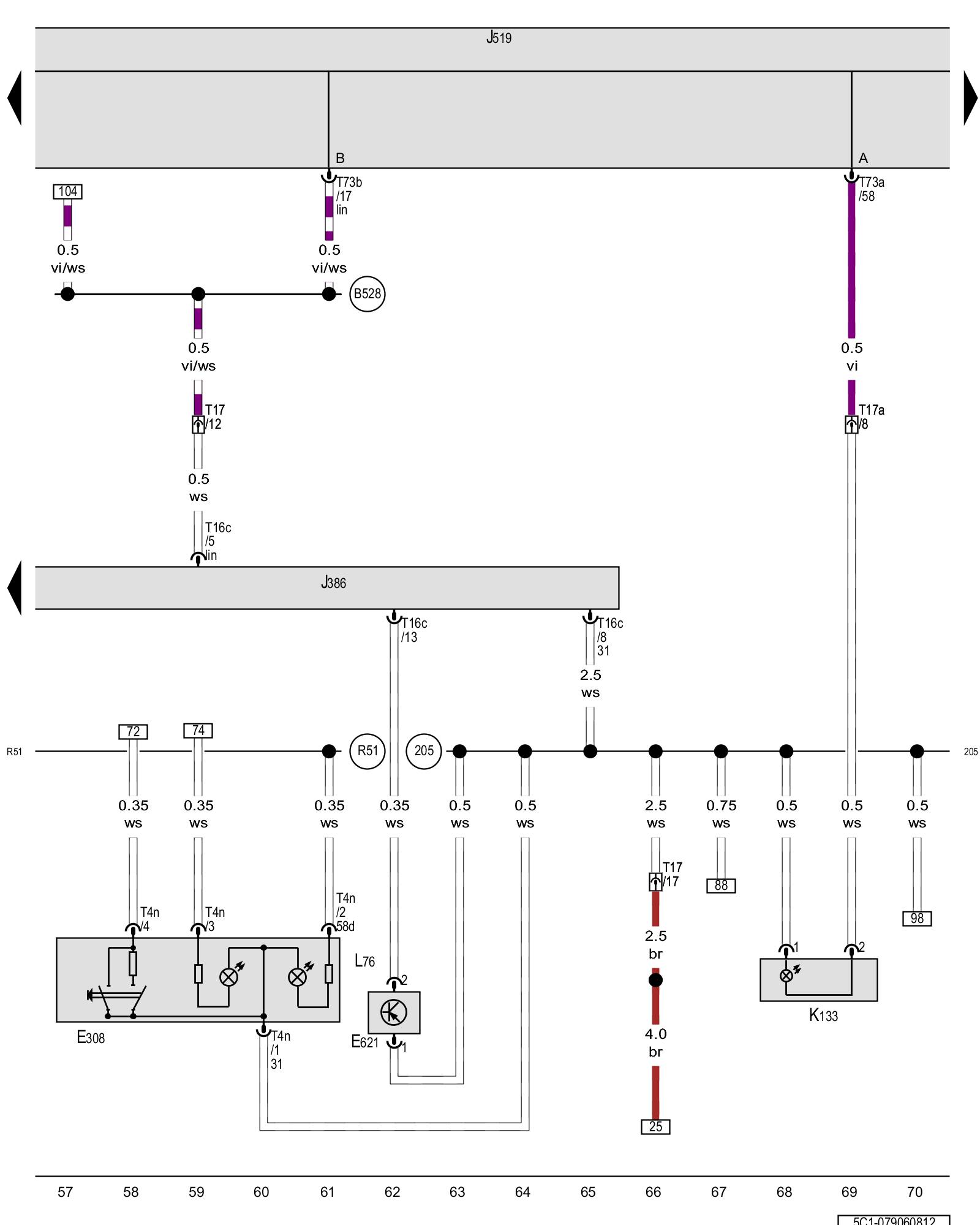

Driver interior locking button, Driver window lowering microswitch, Driver door control module, Vehicle electrical system control module, Central locking -SAFE- indicator lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E308 - Driver interior locking button

E621 - Driver window lowering microswitch

J386 - Driver door control module Locations Control modules in interior

J519 - Vehicle electrical system control module Locations Control modules in interior

K133 - Central locking -SAFE- indicator lamp

L76 - Push button illumination bulb

T4n - 4-pin connector

T16c - 16-pin connector

T17 - 17-pin connector

T17a - 17-pin connector

T73a - 73-pin connector

T73b - 73-pin connector

(205) - Ground connection (in driver door wiring harness)

(B528) - LIN bus connection 1 (in main wiring harness)

(R51) - Connection (publication) (in driver door wiring harness)

Previous Diagram 79/5 (Tracks 43-56)

Next Diagram 79/7 (Tracks 71-84)
