Diagram 28/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Transverse acceleration sensor, Rotation rate sensor, ESP sensor unit, ABS control module, Right rear ABS outlet valve, Left rear ABS outlet valve, ABS hydraulic pump





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

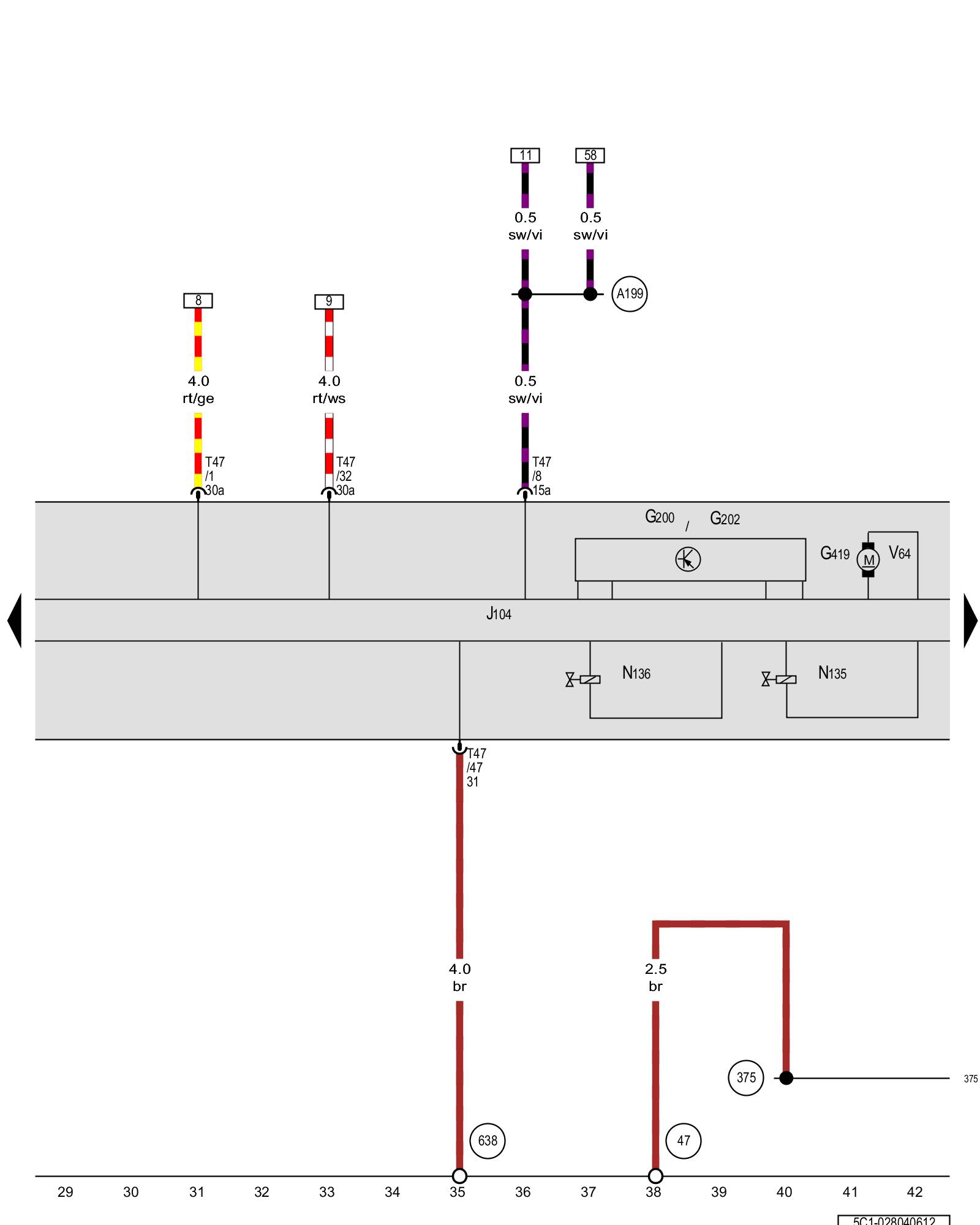

G200 - Transverse acceleration sensor Anti-Lock Brake System (ABS) Overview

G202 - Rotation rate sensor Anti-Lock Brake System (ABS) Overview

G419 - ESP sensor unit Anti-Lock Brake System (ABS) Overview

J104 - ABS control module Anti-Lock Brake System (ABS) Overview Locations [1][2]Diagrams

N135 - Right rear ABS outlet valve

N136 - Left rear ABS outlet valve

T47 - 47-pin connector

V64 - ABS hydraulic pump Anti-Lock Brake System (ABS) Overview

(47) - Ground connection in right front footwell Locations

(375) - Ground connection 10 (in main wiring harness)

(638) - Ground connection on right A-pillar Locations

(A199) - Positive connection 4 (15a) (in instrument panel wiring harness)

Previous Diagram 28/3 (Tracks 15-28)

Next Diagram 28/5 (Tracks 43-56)
