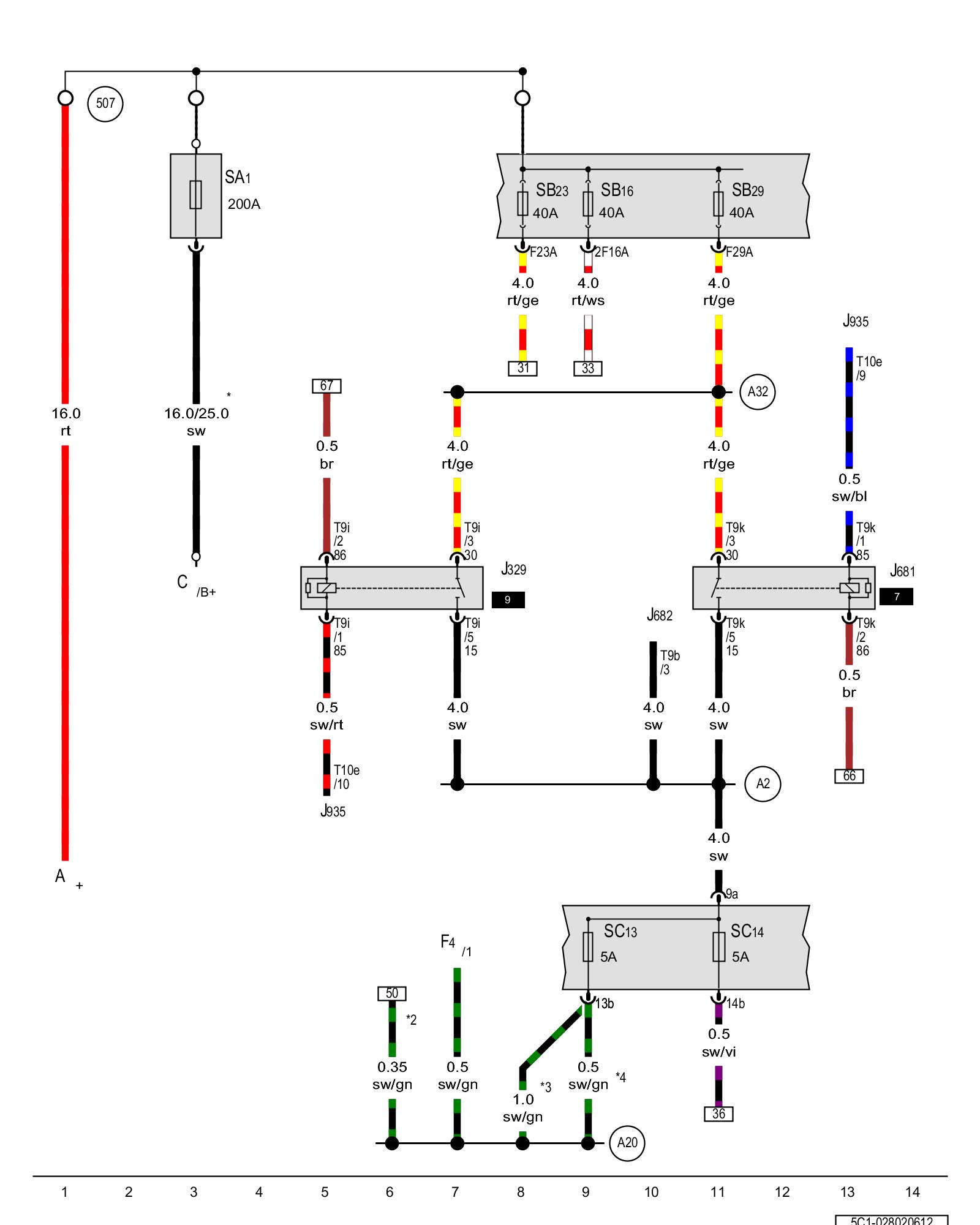

Diagram 28/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Battery, Terminal 15 power supply relay, Terminal 15 power supply relay 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

C - Generator

F4 - Back-up lamp switch Locations

J329 - Terminal 15 power supply relay Relay Carrier on Vehicle Electrical System Control Module

J681 - Terminal 15 power supply relay 2 Relay Carrier on Vehicle Electrical System Control Module

J682 - Terminal 50 power supply relay Relay Carrier on Vehicle Electrical System Control Module

J935 - Converter box Relay Carrier on Vehicle Electrical System Control Module

SA1 - Fuse 1 (on fuse panel A) Overview Of Fuses (SA), (SB), (SC)

SC13 - Fuse 13 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SC14 - Fuse 14 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SB16 - Fuse 16 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

SB23 - Fuse 23 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

SB29 - Fuse 29 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

T9b - 9-pin connector

T9i - 9-pin connector

T9k - 9-pin connector

T10e - 10-pin connector

(507) - Terminal 30 threaded connection (on battery fuse holder)

(A2) - Positive connection (15) (in instrument panel wiring harness)

(A20) - Positive connection (15a) (in instrument panel wiring harness)

(A32) - Positive connection (30) (in instrument panel wiring harness)

* - Depending on equipment

*2 - Only for vehicles with tire pressure monitoring

*3 - from December 2011

*4 - Through December 2011

Next Diagram 28/3 (Tracks 15-28)
