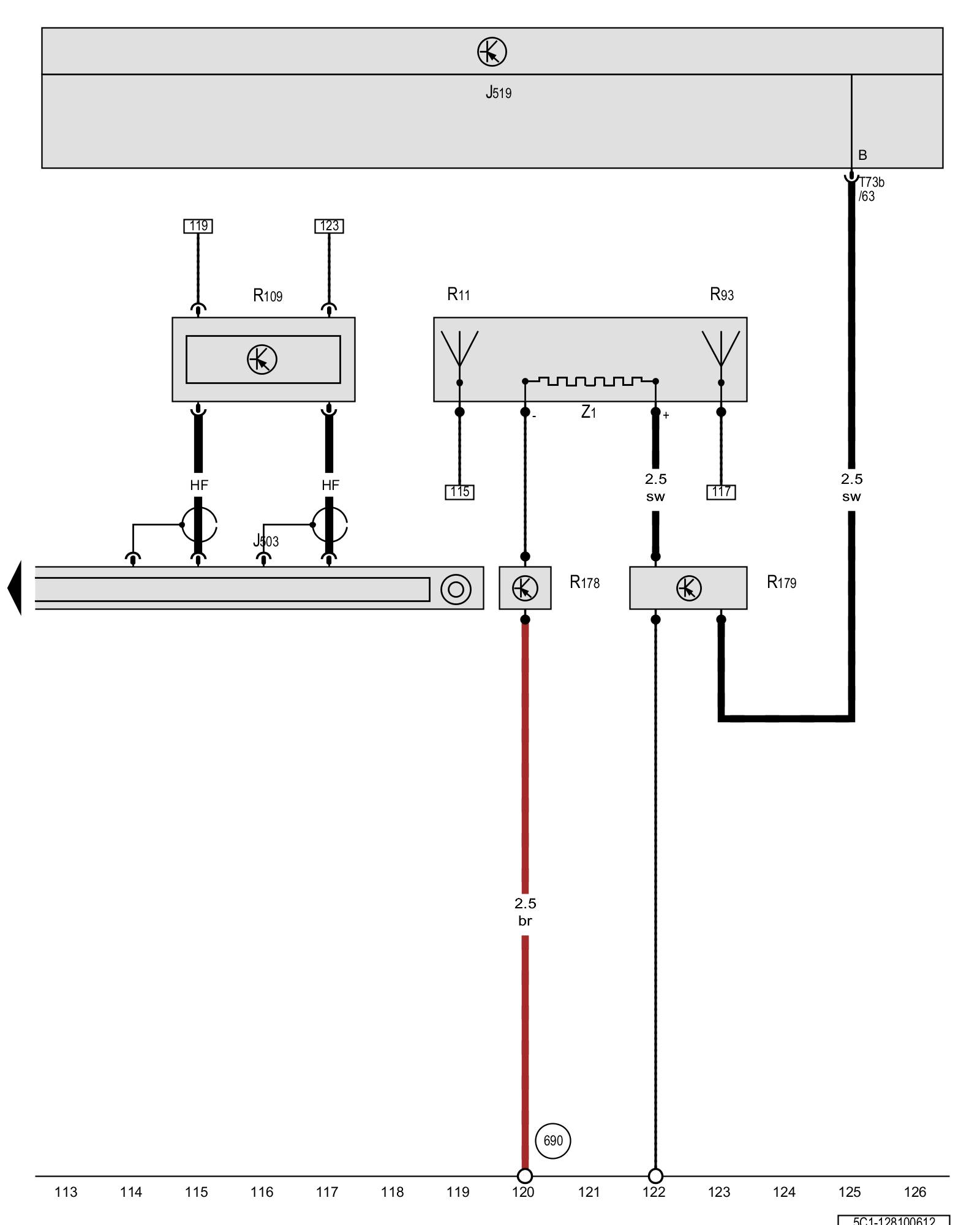

Diagram 128/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio/navigation display unit control module, Antenna, Radio antenna 2, Right antenna module, FM frequency filter in negative wire, FM frequency filter in positive wire





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/navigation display unit control module Radio/Navigation System Overview Control modules in interior

J519 - Vehicle electrical system control module Locations Control modules in interior

R11 - Antenna Radio/Navigation System Overview

R93 - Radio antenna 2 Radio/Navigation System Overview

R109 - Right antenna module Locations

R178 - FM frequency filter in negative wire Locations

R179 - FM frequency filter in positive wire

T73b - 73-pin connector

Z1 - Rear window defogger

(690) - Ground connection on roof frame, center rear Locations

Previous Diagram 128/9 (Tracks 99-112)
