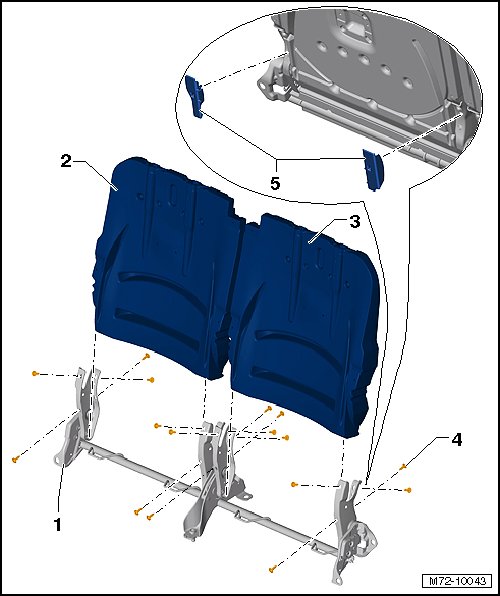

Backrest Frame Assembly Overview

Backrest Frame Assembly Overview






1 Backrest frame

• Removing and Installing, refer to => [ Backrest Frame ] Backrest Frame

2 Right backrest shell

3 Left backrest shell

4 Bolt

• 4 Nm

• Quantity: 16

5 Cover
