Backrest Adjusting Wheel

Backrest Adjusting Wheel

• Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

Removing

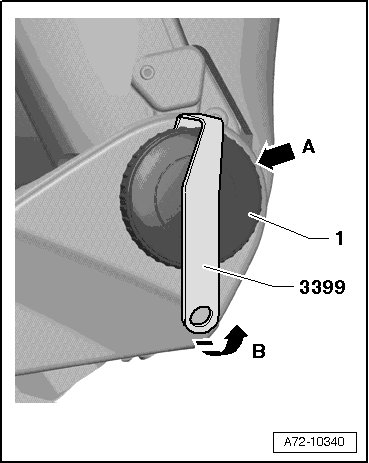

- Turn the backrest adjustment wheel - 1 - until the retainer can be seen from the rear - arrow A -. Use a flashlight if necessary.






- Turn the backrest adjustment wheel 120° further.

- Insert the assembly tool (3399) and lift it in the direction of - arrow B -.

- Remove the backrest adjustment wheel.

Installation

Installation is reverse of removal, noting the following:

- Replace the backrest adjustment wheel if it is too loose after assembling.
