Seat Height Adjuster

Seat Height Adjuster

• Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

Removing

- Position the seat in the highest seat position.

- Remove backrest adjusting wheel. Refer to => [ Backrest Adjusting Wheel ] Backrest Adjusting Wheel

- Remove the seat height adjustment handle. Refer to => [ Seat Height Adjustment Handle ] Seat Height Adjustment Handle

- Remove the trim on the door sill side. Refer to => [ Door Sill Side Trim ] Door Sill Side Trim.

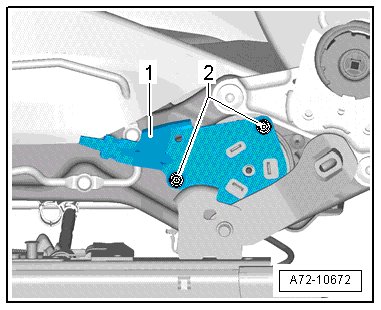

- Remove bolts - 2 - to (8 Nm) (quantity: 2).






- Remove the lever for the seat height adjustment - 1 -.

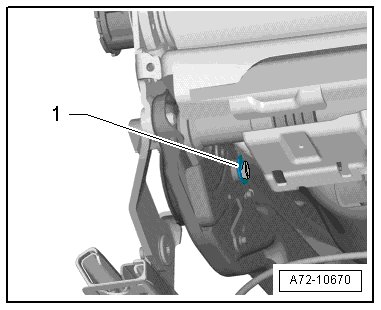

- Remove the lock washer - 1 -.

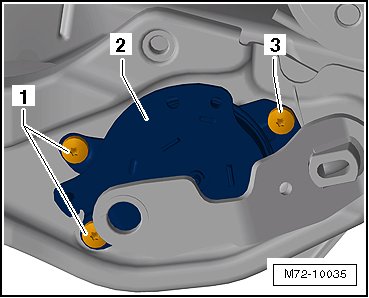

• The bolts - 1 - and the bolt - 3 - are different lengths. The bolt - 3 - is shorter.






- Remove the bolts - 1 - (2 pieces) and - 3 - (8 Nm).

- Remove the seat height adjustment - 2 -.

Installation

- Install in reverse order of removal.
