Wind Deflector

Wind Deflector

Removing






- Open the glass panel for the panorama sliding/tilting sunroof all the way.

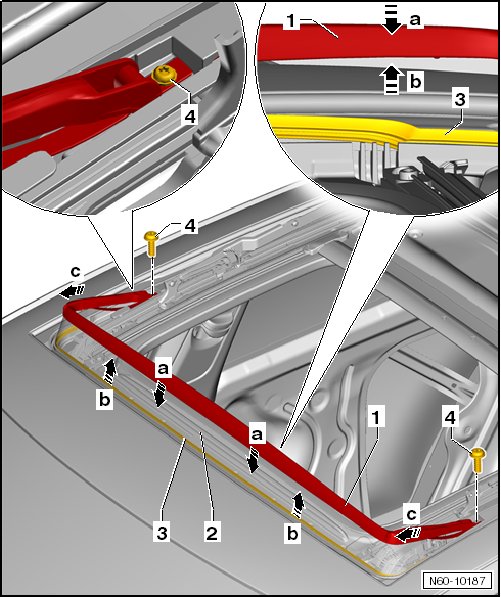

- Reduce the tension for the wind deflector - 2 - - arrows a - and keep it pressed.

- Remove the weather strip - 3 - from the frame - arrow b -.

- Remove screw - 4 - on the left and right.

- Remove the wind deflector from the frame - arrow c -.

Installation






- Install the wind deflector in the frame.

- Install the left and right bolt - 4 - and tighten.

Bolt - 4 - tightening specification: 1.5 Nm.

- Reduce the tension for the wind deflector - 2 - - arrows a - and keep it pressed.

- Install the weather strip - 3 - in the frame.
