Crossbrace

Crossbrace

Removing






- Remove headliner..

- Remove the cover for the sun shade. Refer to => [ Sun Shade Cover ] Sun Shade Cover.

Pay close attention to the sun shade material to prevent it from becoming damaged.

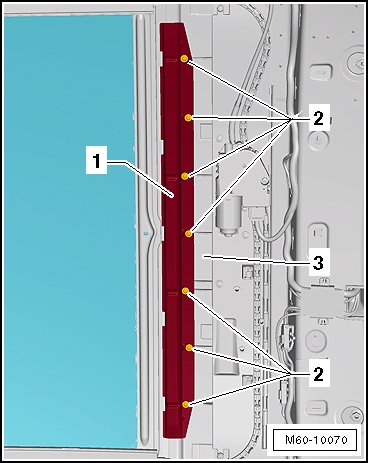

- Remove the bolts - 2 - and the crossbrace - 1 - from the frame - 3 -.

• The sun shade was not shown in the illustration for clarity purposes.

Installation






Pay close attention to the sun shade material to prevent it from becoming damaged.

- Attach the crossbrace - 1 - to the frame - 3 -.

- First tighten all of the bolts - 2 - by hand and then secure them.

Tightening specification - 2 -: 2.5 Nm

- Remove the cover for the sun shade. Refer to => [ Sun Shade Cover ] Sun Shade Cover.

- Install headliner..
