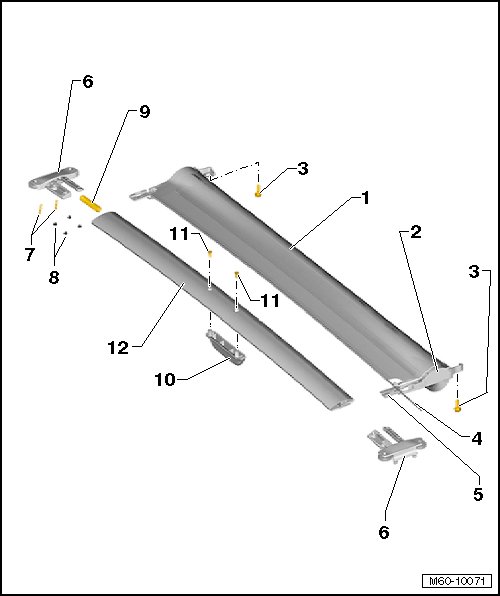

Sun Shade Assembly Overview

Sun Shade Assembly Overview






1 Sun Shade

2 Mount

• For the sun shade material

3 Bolt

• For the sun shade

• 1 on each side

• Tightening specification 2.5 Nm

4 Tension wire

• For attaching the material in the side rail

5 Tappet

6 Sun shade glide

7 Locking pin

• 2 Pieces for each sun shade glide

8 Rubber buffer

• 4 Pieces for each sun shade glide

9 Tension spring

• For the sun shade glide

10 Handle

11 Bolt

• For the handle

• Quantity: 2

• Tightening specification 1 Nm

12 Side rail

• Removing and Installing, refer to => [ Sunroof Rail ] Sunroof Rail
