Operating without Electricity

Operating without Electricity

• If there is a malfunction in the electrical drive, the glass panel for panorama sliding/tilting sunroof can be moved using a commercially available hex wrench.

• More force will be needed since the motor is not disengaged from the drive.






- Lower the headliner..

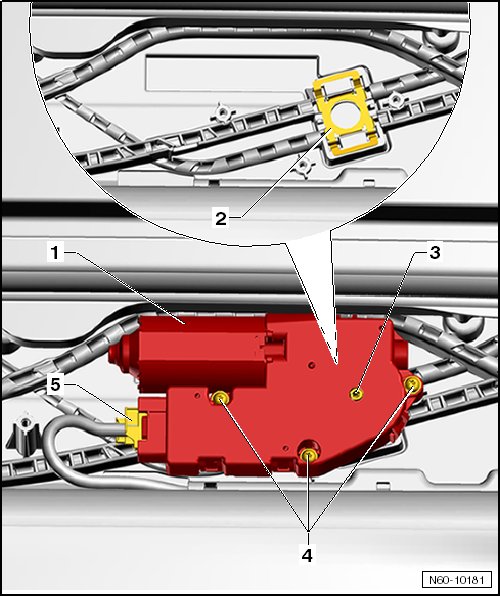

- Guide the hex wrench into the glass panel drive motor- 1 - bolt - 3 -.

- Close the glass panel by turning the bolt - 3 -.
