Upper Instrument Panel Vent

Upper Instrument Panel Vent

Removing

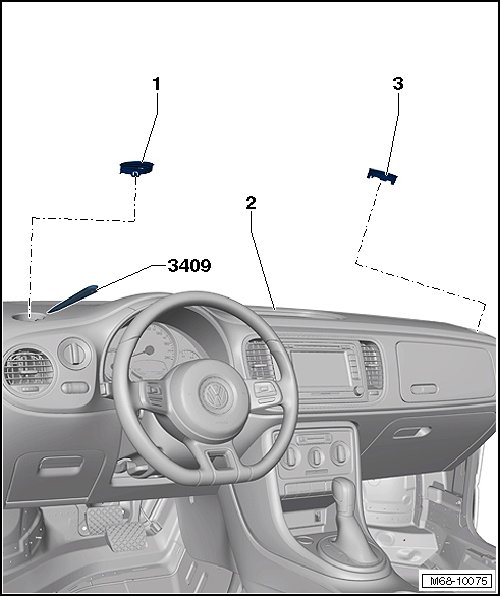

- Release and remove the left vent - 1 - from the instrument panel - 2 - with the trim removal wedge (3409).

- The process for removing the right vent - 3 - is identical to the left vent - 1 -.

Installation

- Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary before installing. Replace any damaged components.
