Support

Support

Removing

- Turn off the ignition.

- Remove center console. Refer to => [ Center Console ] Center Console.

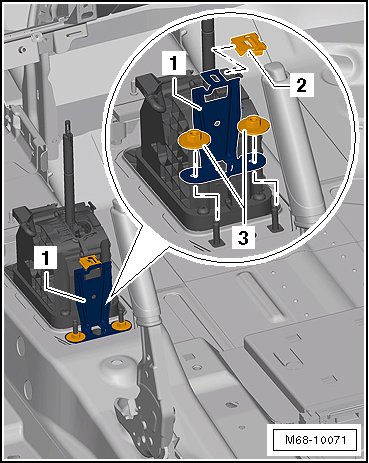

- Remove the 2 nuts - 3 - (2.0 Nm) and the bracket - 1 -.






Installation

- Install in reverse order of removal.

• Check the spring nut - 2 - for damage before installation. Replace any damaged components.
