Glove Compartment

Glove Compartment

Removing

- Turn off the ignition.

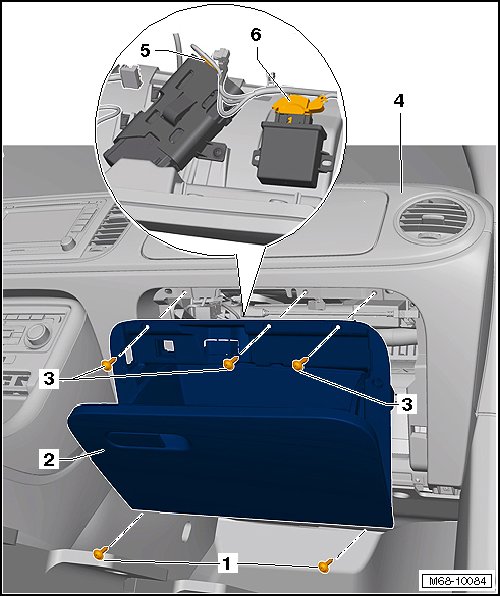

- Remove the screws - 1 - (1.5 Nm).






- Open the glove compartment door - 2 - and remove the bolts - 3 - (1.5 Nm).

- Close the glove compartment door - 2 - and gently remove the complete glove compartment from the instrument panel - 4 -.

- If equipped, disconnect the connectors - 5 - and - 6 -.

- If equipped, disconnect the wiring harness from the glove compartment lamp switch (E26).

- Remove the glove compartment from the instrument panel - 4 -.

Installation

- Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary before installing. Replace any damaged components.
