Front Console Mounting Bracket

Front Console Mounting Bracket

Removing

- Turn off the ignition.

- Remove the bolt - 1 - (1.5 Nm) and remove the footwell trim panel - 2 -.

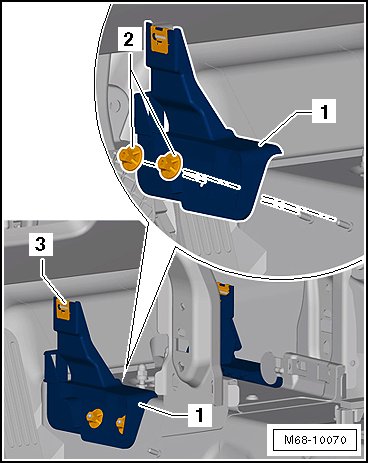

- Remove the 2 nuts - 2 - (2.0 Nm) and the bracket - 1 -.






• Removing the right bracket it identical.

Installation

- Install in reverse order of removal. Note the following:

- Check the spring nut - 3 - for damage before installation. Replace any damaged components.

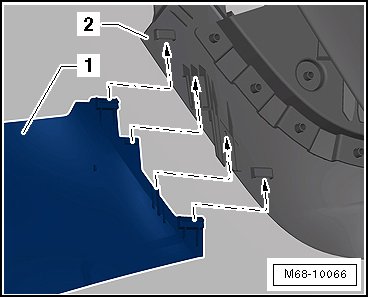

- Secure the footwell trim panel - 1 - in the guides on the center console- 2 -.
