Front Center Armrest

Front Center Armrest

Removing

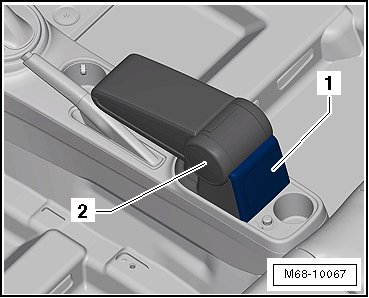

- Remove the trim panel - 1 - for the center armrest - 2 -.






- Remove the bolt - 1 -(1.5 Nm).






- Remove the nut - 1 - (15 Nm) and remove the center armrest - 2 - from the center console.






Installing

- Install in reverse order of removal.
