Upper A-Pillar Trim

Upper A-Pillar Trim

• The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

- Remove the instrument panel cover on each side. Refer to => [ Side Instrument Panel Covers ] Side Instrument Panel Covers.

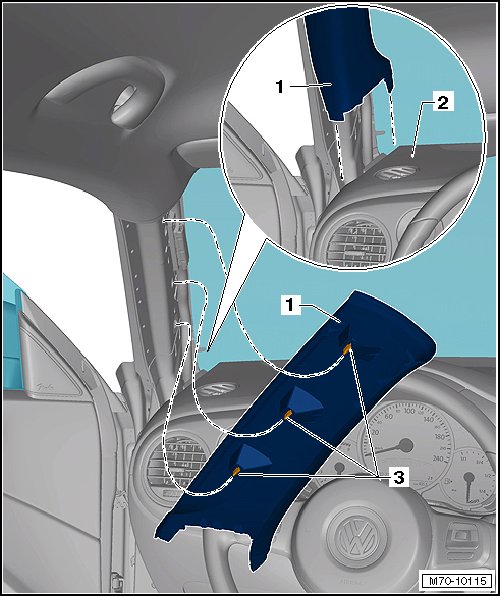

- Loosen the trim - 1 - from the door seal molding.

- Remove the trim - 1 - near the clips - 3 - from the retainers.

- Remove the trim - 1 - from the instrument panel - 2 -.

Installing

- Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary before installing. Replace any damaged components.

• Make sure the trim panel is installed inside the door seal.
