Front Passenger Side A-Pillar Lower Trim

Front Passenger Side A-Pillar Lower Trim

Removing

- Remove the sill panel strip from the body near the lower A-pillar trim, refer to => [ Sill Panel ] Service and Repair.

- Remove the instrument panel cover on each side. Refer to => [ Side Instrument Panel Covers ] Side Instrument Panel Covers.

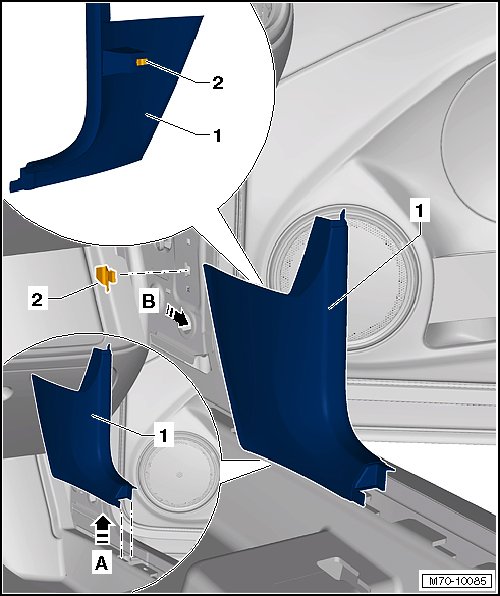

- Loosen the trim - 1 - from the body in the direction of - arrow A -. Loosen the trim from the door seal molding.

- Remove the trim - 1 - from the A-pillar in the direction of the - arrow B -.

Installation

- Insert the clip - 2 - into the body - arrow -.

- Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary before installing. Replace any damaged components.

• Make sure the trim panel is installed inside the door seal.
