B-Pillar Trim, Detaching and Attaching

B-Pillar Trim, Detaching and Attaching

• The following describes loosening and fastening the B-pillar trim on the left side of the vehicle. Loosening and fastening the trim on the right side of the vehicle is identical.

Detachment

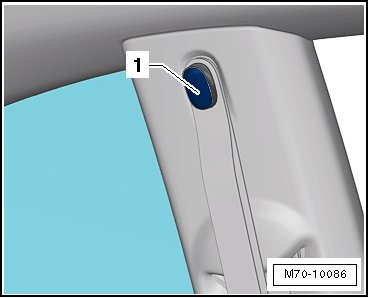

- Remove the cover - 1 - with the trim removal wedge (3409).

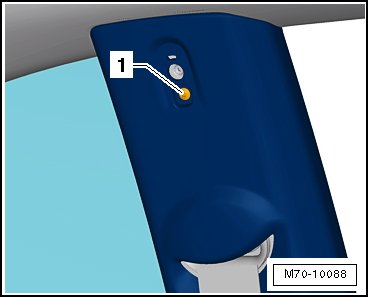

- Remove the bolt - 1 - (2 Nm).






- Remove the cap - 2 - and remove the retaining loop - 3 -.

- Remove the bolt - 1 - (2 Nm).






- Loosen the trim from the door seal molding.






- Remove the trim panel - 1 - from the side trim panel - arrows -.

- Remove the trim panel - 1 - from the side B-pillar mounting - 2 -.

- Remove the trim - 1 - from the upper mount.

Mounting

• Check all the fasteners for damage and replace if necessary before installing. Replace any damaged components.

• Make sure the trim panel is installed inside the door seal.

- Install in reverse order of removal.
