A-Pillar Deformation Element

A-Pillar Deformation Element

Removing






- Remove the A-pillar trim, refer to => [ Upper A-Pillar Trim ] Upper A-Pillar Trim.

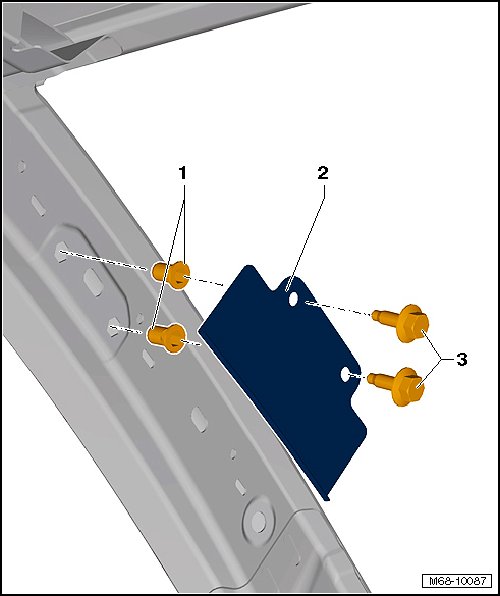

- Remove the bolts - 3 - (25 Nm) and remove the deformation element - 2 -.

Installation

- Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary before installing. Replace any damaged components.
