Front Passenger Side Instrument Panel Deformation Element

Front Passenger Side Instrument Panel Deformation Element

Removing

- Disconnect the battery.

- Remove the glove compartment. Refer to => [ Glove Compartment ] Glove Compartment.

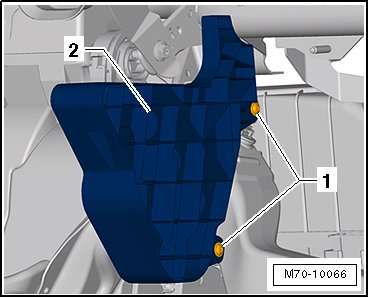

- Remove the screws - 1 - (1.5 Nm).






- Remove the deformation element - 2 - from the instrument panel crossmember.

Installation

- Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary before installing. Replace any damaged components.
