Driver Side Instrument Panel Deformation Element

Driver Side Instrument Panel Deformation Element

Removing

- Disconnect the battery.

- Remove the instrument panel. Refer to => [ Instrument Panel ] Instrument Panel.

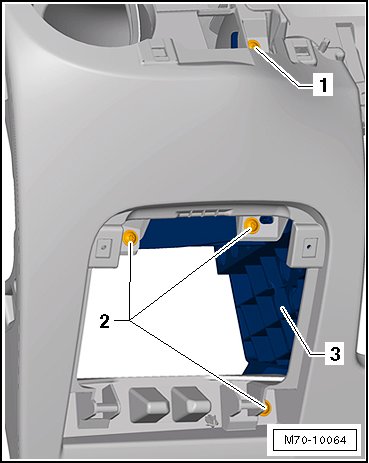

- Remove the bolt - 1 - (1.5 Nm).






- Remove bolts - 2 - (1.5 Nm) and remove the deformation element - 3 - from instrument panel.

Installation

- Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary before installing. Replace any damaged components.
