Driver Side Instrument Panel Trim

Driver Side Instrument Panel Trim

Removing

- Turn off the ignition.

Vehicles with Front Passenger Side Instrument Panel Cover without Storage Compartment

- Remove the front passenger side instrument panel cover, refer to => [ Cover and Front Passenger Side Instrument Panel Reinforcement ] Cover and Front Passenger Side Instrument Panel Reinforcement.

Vehicles with Front Passenger Side Instrument Panel Cover with Storage Compartment

- Remove the instrument panel cover and front passenger side storage compartment, refer to => [ Instrument Panel Cover and Front Passenger Side Storage Compartment ] Instrument Panel Cover and Front Passenger Side Storage Compartment.

Procedure for All Vehicles

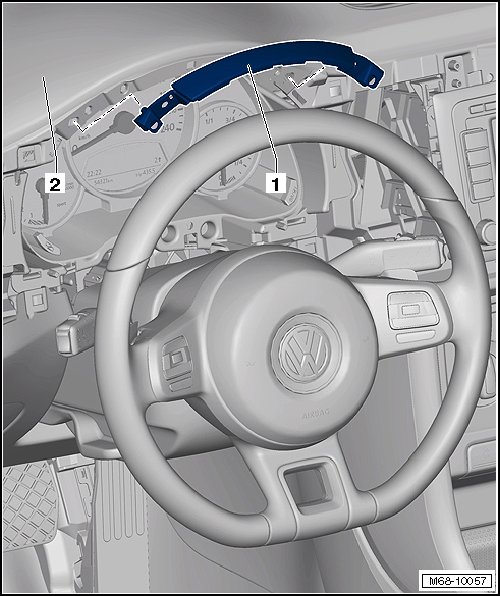

- Remove the trim - 1 - from the instrument panel - 2 -.

Installation

- Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary before installing. Replace any damaged components.
