Sill Panel Cover Assembly Overview

Sill Panel Cover Assembly Overview

• The illustration shows a left door hinge. The right door hinge is identical.

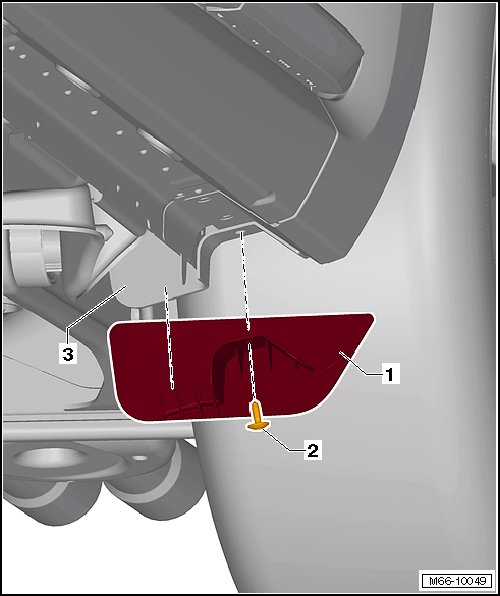

1 Sill panel cover

• Removing:

- Remove the bolt - 2 -.

- Remove the sill panel cover downward from the rear wheel housing liner - 3 -.

• installing

- Slide the sill panel onto the rear wheel housing liner - 3 - from underneath.

- Install the bolt - 2 - and tighten.

2 Bolt

• Quantity: 1

• Tightening specification: 2 Nm

3 Rear Wheel Housing Liner

• Removing and Installing, refer to => [ Rear Wheel Housing Liner ] Rear Wheel Housing Liner
