Side Luggage Compartment Cover

Side Luggage Compartment Cover

• Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

Removing

- Turn off the ignition.

- Remove the luggage compartment cover, refer to => [ Luggage Compartment Cover ] Luggage Compartment Cover

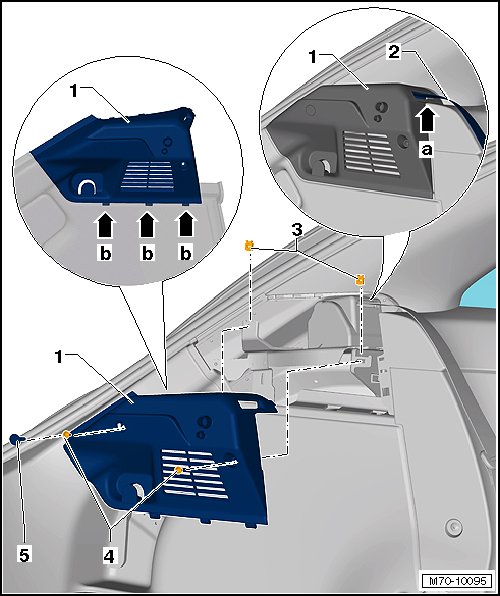

- Remove the cap - 5 - from the storage compartment - 1 -.

- Remove the screws - 4 - (1.5 Nm).

- Remove the storage compartment - 1 - upward and out of the guides - arrows b -.

- Remove the seat belt - 2 - through the opening in the storage compartment - arrow a -.

- Disconnect the wiring harnesses, if installed.

Installation

- Install in reverse order of removal.
