Side Adjusting Buffer and Stop

Side Adjusting Buffer and Stop

Removing

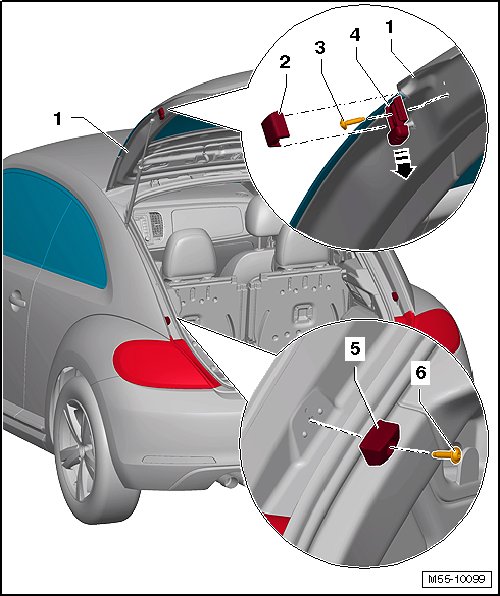

- Unclip the cap - 2 - from the adjusting buffer - 4 -.

- Remove the bolt - 3 - and remove the adjusting buffer - 4 - from the rear lid - 1 -.

- Remove the bolt - 6 - and remove the stop - 5 - from the side panel.

Installation






- Attach the stop - 5 - to the side panel and install the bolt - 6 -.

Bolt - 6 - tightening specification: 10 Nm

- Attach the adjusting buffer - 4 - to the rear lid - 1 - and install the bolt - 2 -.

Bolt - 3 - tightening specification: 8 Nm

- Unclip the cap - 2 - from the adjusting buffer - 4 -.
