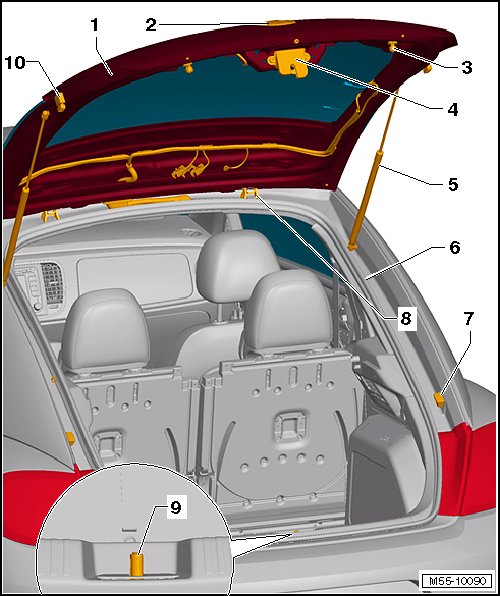

Rear Lid Assembly Overview

Rear Lid Assembly Overview






1 Rear lid

• Removing and Installing, refer to => [ Rear Lid ] Rear Lid

• Adjusting, refer to => [ Rear Lid, Adjusting ] Rear Lid, Adjusting

2 Release element

• Removing and Installing, refer to => [ Release Element ] Release Element

3 Lower adjusting buffer

• Left and right

• Removing and Installing, refer to => [ Lower Adjusting Buffer ] Lower Adjusting Buffer

4 Rear lid latch

• Removing and Installing, refer to => [ Rear Lid Latch ] Rear Lid Latch

• With emergency release => [ Rear Lid Latch ] Rear Lid Latch

5 Gas strut

• Removing and Installing, refer to => [ Gas-Filled Strut ] Gas-Filled Strut

• Releasing the gas, refer to => [ Gas-Filled Strut, Releasing Gas ] Gas-Filled Strut, Releasing Gas

6 Seal

• Removing and Installing, refer to => [ Rear Lid Seal ] Rear Lid Seal

7 Stop

• For the side adjusting buffer - 10 -

• Removing and Installing, refer to => [ Side Adjusting Buffer and Stop ] Side Adjusting Buffer and Stop

8 Hinge

• Removing and Installing, refer to => [ Rear Lid Hinge ] Rear Lid Hinge

9 Rear lid catch

• Removing and Installing, refer to => [ Striker Pin ] Striker Pin

• Adjusting, refer to => [ Rear Lid Striker Pin, Adjusting ] Rear Lid Striker Pin, Adjusting

• There are different versions. For the correct allocation, refer to the Parts Catalog.

10 Side adjusting buffer

• Left and right

• Removing and Installing, refer to => [ Side Adjusting Buffer and Stop ] Side Adjusting Buffer and Stop
