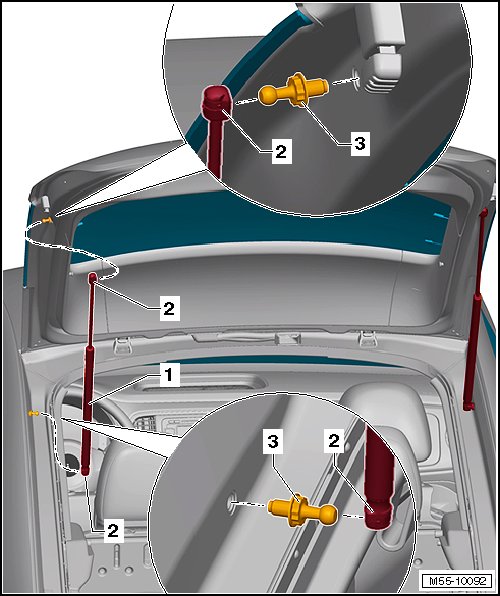

Gas-Filled Strut Assembly Overview

Gas-Filled Strut Assembly Overview






1 Gas strut

• Removing and Installing, refer to => [ Gas-Filled Strut ] Gas-Filled Strut

• Releasing the gas, refer to => [ Gas-Filled Strut, Releasing Gas ] Gas-Filled Strut, Releasing Gas

2 Ball socket

• With spring clip

3 Ball head pin

• Always replace

• Tightening specification: 20 Nm + 45°
