Diagram 48/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

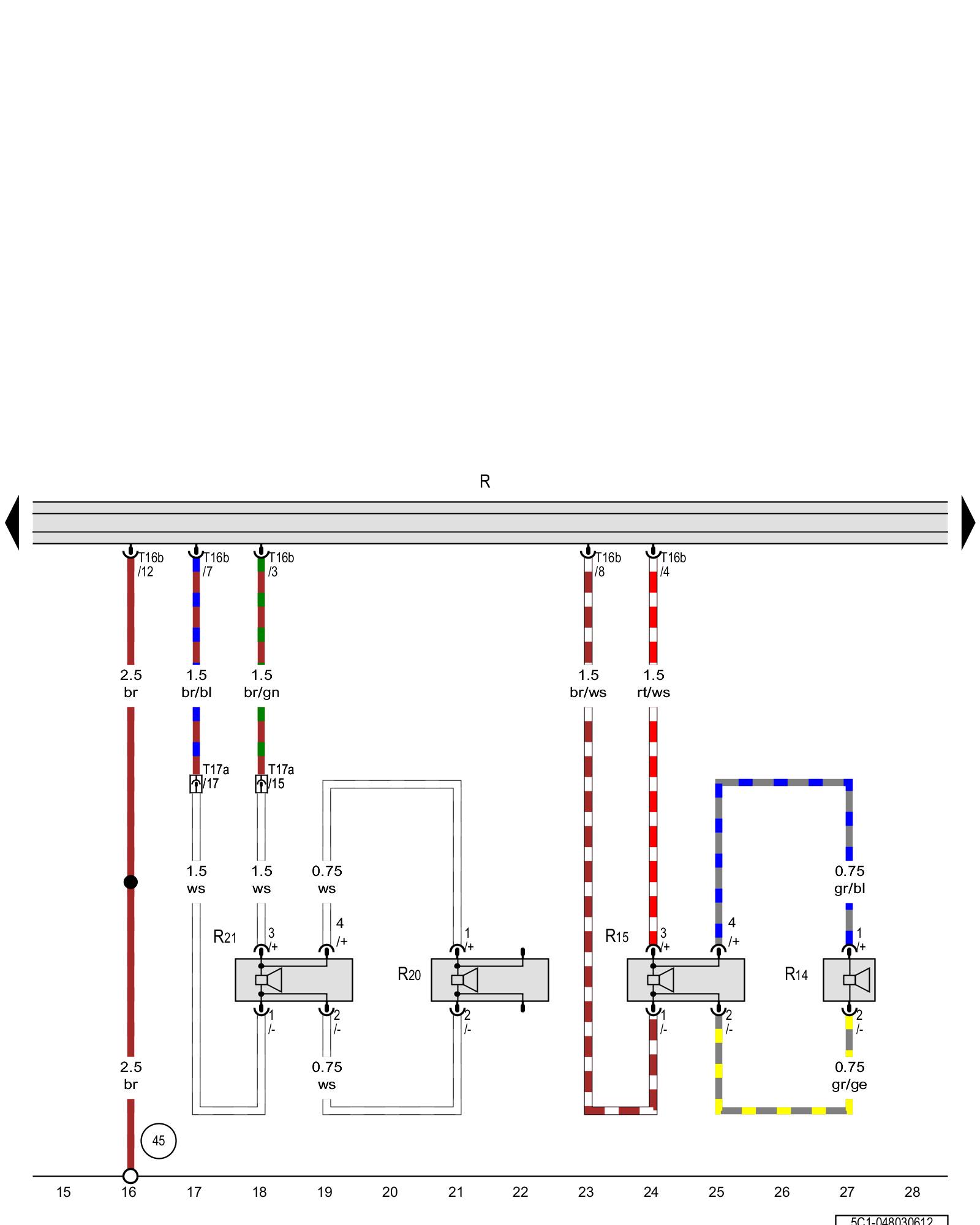

Radio, Left rear treble speaker, Left rear bass speaker, Left front treble speaker, Left front bass speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio

R14 - Left rear treble speaker Locations

R15 - Left rear bass speaker Locations

R20 - Left front treble speaker Locations

R21 - Left front bass speaker Locations

T16b - 16-pin connector

T17a - 17-pin connector

(45) - Ground connection behind instrument panel, center Locations

Previous Diagram 48/2 (Tracks 1-14)

Next Diagram 48/4 (Tracks 29-42)
