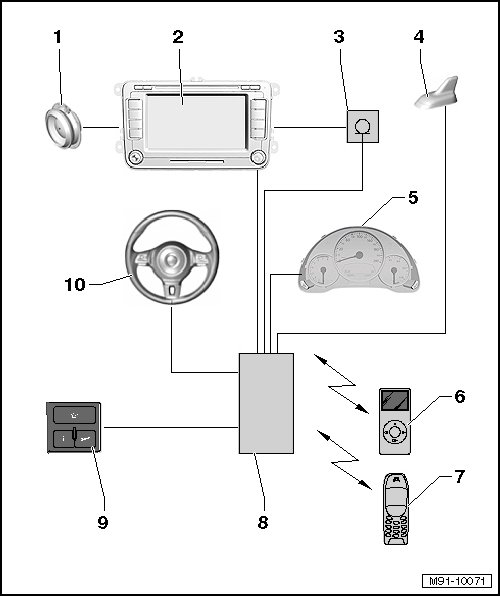

UHV Premium System Overview

UHV Premium System Overview






1 Speaker Systems

2 Radio (R) or Radio/Navigation Display Unit Control Module (J503)

3 Telephone Microphone (R38)

• In Front Interior Light (W1).

4 Telephone Antenna (R65)

• Roof antenna

• Antenna systems, refer to => [ Antenna Systems ] Description and Operation.

5 Instrument Cluster Control Module (J285)

6 External Multimedia Player

7 Cellular Telephone (R54)

8 Cell Phone Operating Electronics Control Module (J412)

9 Cellular Telephone Preparation Control Head (E508)

• In Front Interior Light (W1).

10 Multifunction Steering Wheel
