Right Antenna Module (R109)

Right Antenna Module (R109)

The right antenna module is on the right side of the rear lid.

• Switch off the ignition and all electrical consumers.

• Remove the key.

Removing

- Remove the rear lid trim panel..

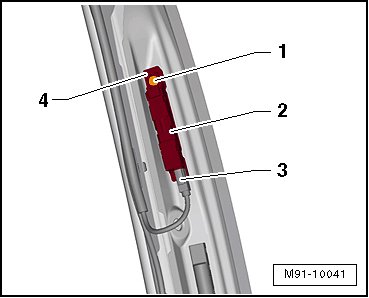

- Disconnect the connectors - 3 - and - 4 -.






- Remove the screw - 1 - and then remove the right antenna module - 2 - from the rear lid.

Installing

Install in reverse order of removal. Note the following:

- Tighten the threaded connections to the tightening specification. Refer to => [ Antenna Systems Overview ] Antenna Systems Overview.

Overview, refer to => [ Antenna Systems Overview ] Antenna Systems Overview.
