Tail Lamp

Tail Lamp

• Turn off the ignition and all electrical consumers.

• Remove the key.

Removing

Vehicles with Subwoofer (R211)

- Remove the subwoofer.

All vehicles

- Remove the cover inside the side trim panel.

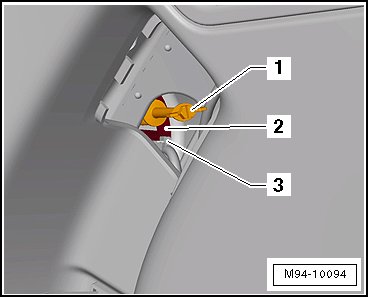

- Disconnect the connector - 3 -.






- Remove the screw - 1 - from the tail lamp assembly - 2 - and then remove it by pulling outward on it.

Installing

Install in reverse order of removal. Note the following:

- Tighten the threaded connections to the tightening specification shown in => [ Tail Lamps Overview ] Description and Operation.

- Check the gap dimensions on the body.
