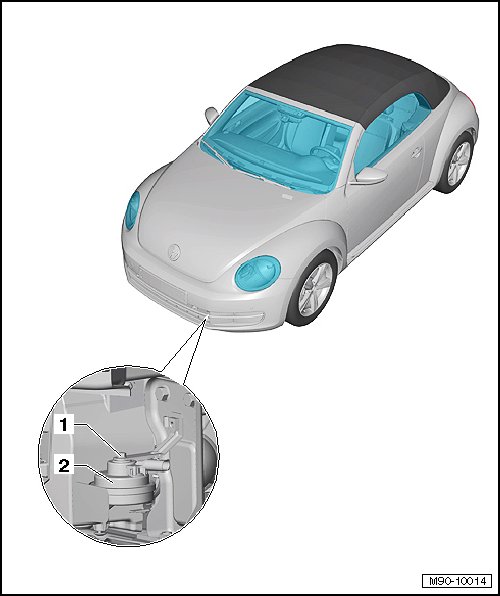

Horn Overview

Horn Overview






1 Nut

• 10 Nm

• Tightening specification bolt to longitudinal member: 20 Nm

2 High Tone Horn (H2) and Low Tone Horn (H7)

• Removing and installing, refer to => [ Horns (H2)/(H7) ] Horns (H2)/(H7).
