Additional Instruments

Additional Instruments

• Turn off the ignition and all electrical consumers.

• Remove the key.

The radio must first be removed, so that the bolts behind the radio can be accessed.

Removing

- Remove the radio.

- Remove the bolts - arrows - and remove the additional instruments and the cover - 1 - upward from the instrument panel.






- Disconnect the connector.

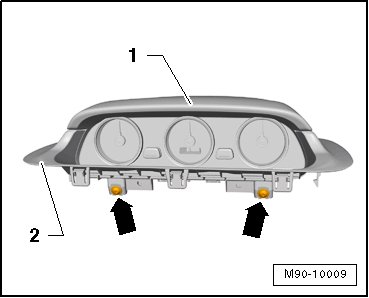

- Remove the bolts - arrows - from the cover - 2 - and then remove the additional instruments - 1 - from the cover - 2 -.






Installing

Install in reverse order of removal. Note the following:

- Tighten the threaded connections to the tightening specification shown in => [ Additional Instruments Overview ] Additional Instruments Overview.
