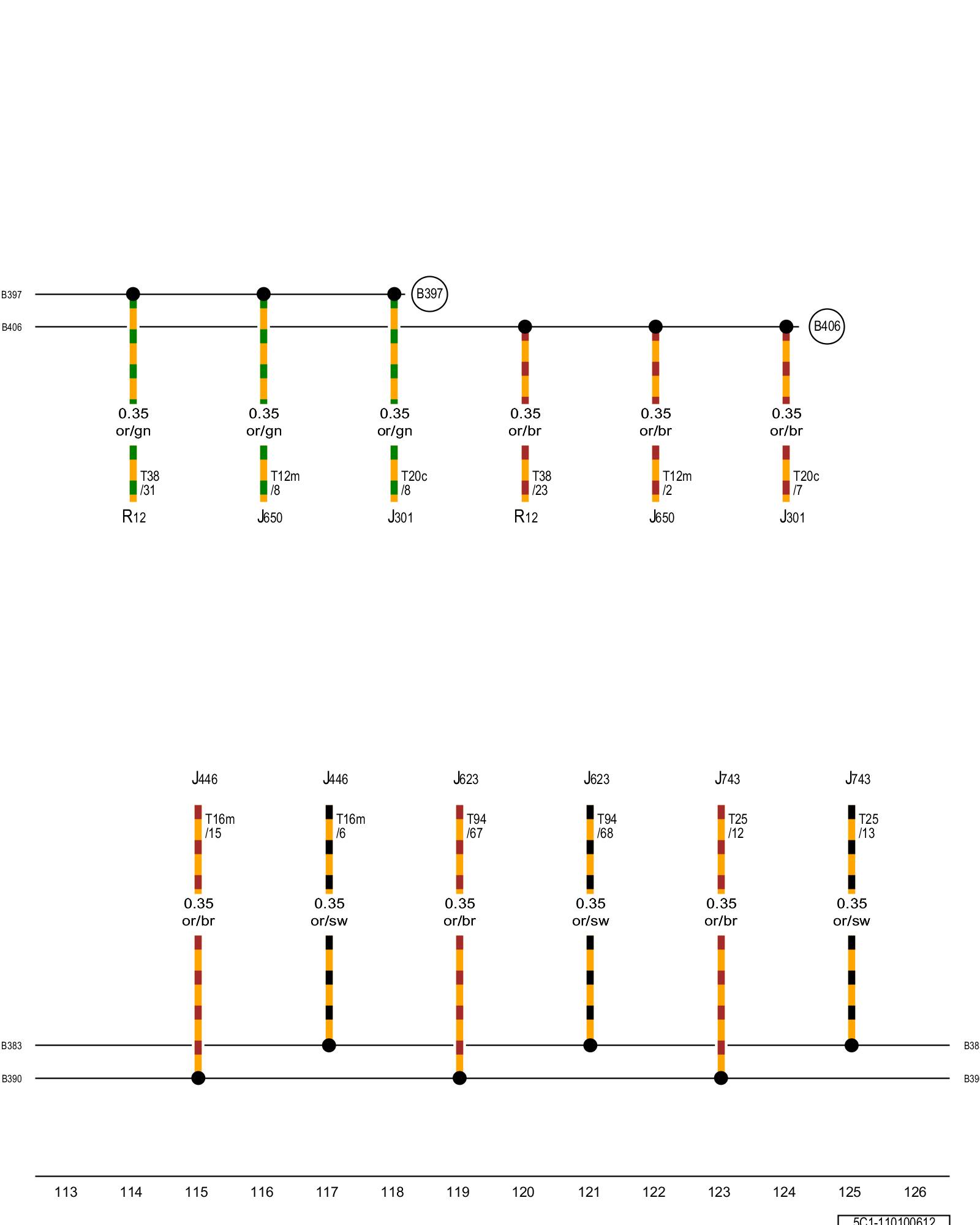

Diagram 110/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Powertrain CAN bus high connection 1 (in main wiring harness), Powertrain CAN bus low connection 1 (in main wiring harness), Comfort system CAN bus high connection 1 (in main wiring harness), Comfort system CAN bus low connection 1 (in main wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J301 - A/C control module Climatic System Component Overview A/C Control Module -J301-

J446 - Parking aid control module Control modules in interior

J623 - Engine control module Locations

J650 - Multimedia system control module Radio/Navigation System Overview Control modules in interior

J743 - DSG transmission Mechatronic Locations DSG Transmission Mechatronic -J743-

R12 - Amplifier Locations Control modules in interior

T12m - 12-pin connector

T16m - 16-pin connector

T20c - 20-pin connector

T25 - 25-pin connector

T38 - 38-pin connector

T94 - 94-pin connector

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)
