Inner Window Shaft Seal

Inner Window Shaft Seal

• This removal and installation procedure describes only the left inner window shaft seal. The procedure is the same for the right inner window shaft seal.

• The seal on the door flange/window shaft has a metal insert in the center.

• If this seal part gets bent, it will not be possible to straighten it out again. It will remain "wavy".

• Pull the seal upward off evenly from the door flange/window shaft without bending it.

• The inner window shaft seal and the outer door seal are components.

Removing






- Remove the front door trim.

- Remove the lower door seal - 1 - from the door in the B-pillar area with the clips - 2 -.

- Unclip the rubber clips on the seal in the B-pillar area from the door - arrow a -.

- Remove the seal - 1 - evenly from the door flange - 3 -.

- Unclip the rubber clips on the seal - 1 - from the door in the area where the exterior mirror is mounted - arrow b -.

- Remove the seal - 1 - upward from the door.

Installation






• The window shaft seal clips should not be damaged, otherwise replace them.

- Slide the seal - 1 - into the window guide mount - 2 - and press it onto the door in the area where the exterior mirror is mounted.

- Lock the rubber clips for the inner window shaft seal - 3 - in the intended openings on the door.

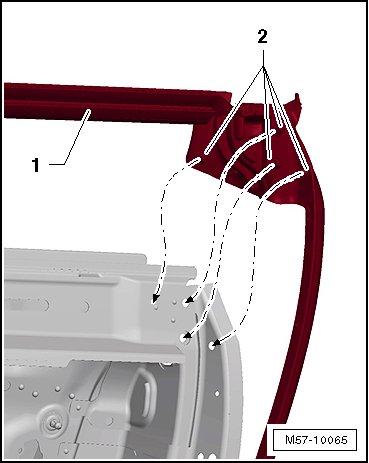

- Press the seal - 1 - on the B-pillar onto the door - arrow - beginning with the clips - 2 -.






- Lock the rubber clips - 2 - for the inner window shaft seal - 1 - in the intended openings on the door.






- Press the seal - 1 - onto the flange - 2 - evenly starting at the B-pillar.






- Install the front door trim.
