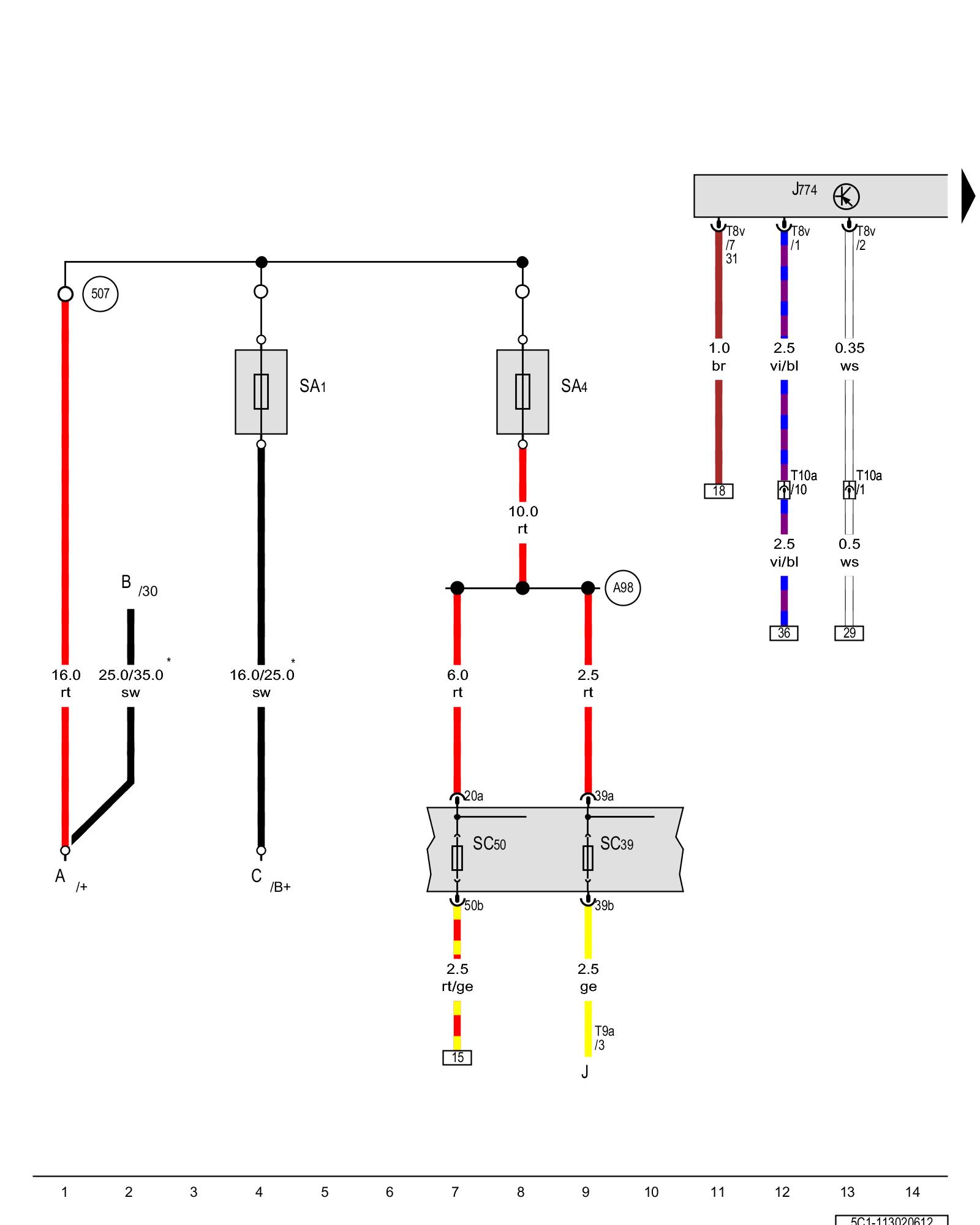

Diagram 113/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Front seat heating control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

C - Generator

J - Headlamp dimmer/flasher relay Relay Carrier on Vehicle Electrical System Control Module

J774 - Front seat heating control module Control modules in interior [1][2]Diagrams

SA1 - Fuse 1 (on fuse panel A) Overview Of Fuses (SA), (SB), (SC)

SA4 - Fuse 4 (on fuse panel A) Overview Of Fuses (SA), (SB), (SC)

SC39 - Fuse 39 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SC50 - Fuse 50 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

T8v - 8-pin connector

T9a - 9-pin connector

T10a - 10-pin connector

(507) - Terminal 30 threaded connection (on battery fuse holder)

(A98) - Positive connection 4 (30) (in instrument panel wiring harness)

* - Depending on equipment

Next Diagram 113/3 (Tracks 15-28)
