Roof Grab Handle Bracket







Roof Grab Handle Bracket

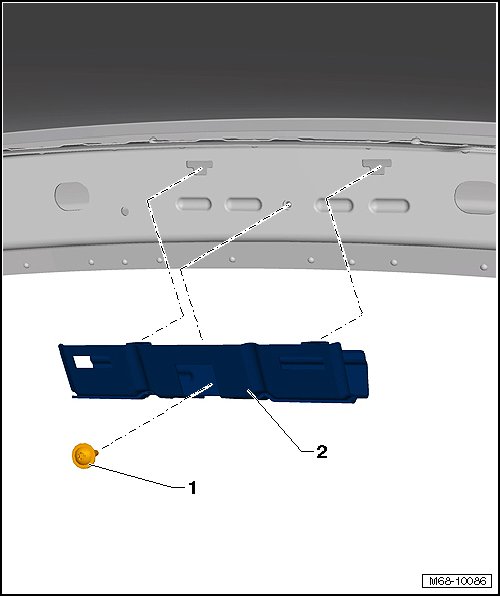

Illustration shows the left front grab retainer, removing and installing the right grab retainer is identical.

- Lower the headliner, refer to => [ Headliner, Loosening and Securing ] Headliner, Loosening and Securing.

- Remove the bolt - 1 - (4.5 Nm).






Slide bracket - 2 - upward and remove.

Allocation of bracket installed, refer to the Parts Catalog

Installation

- Install in reverse order of removal.
