Hood Support Rod: Service and Repair

Support Rod

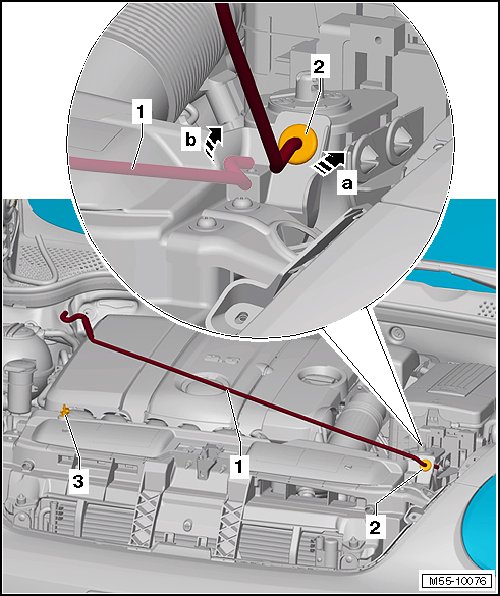

Removing






- Support the hood.

- Move - arrow a - the support rod - 1 - forward.

- Remove the support rod - 1 - from the rubber grommet - 2 - - arrow b -.

Installation






- Check the mount - 3 - for damage and replace if necessary.

- Install the support rod - 1 - into the rubber grommet - 2 - - arrow a -.

- Move the support rod - 1 - back to the lock carrier - arrow b -.
